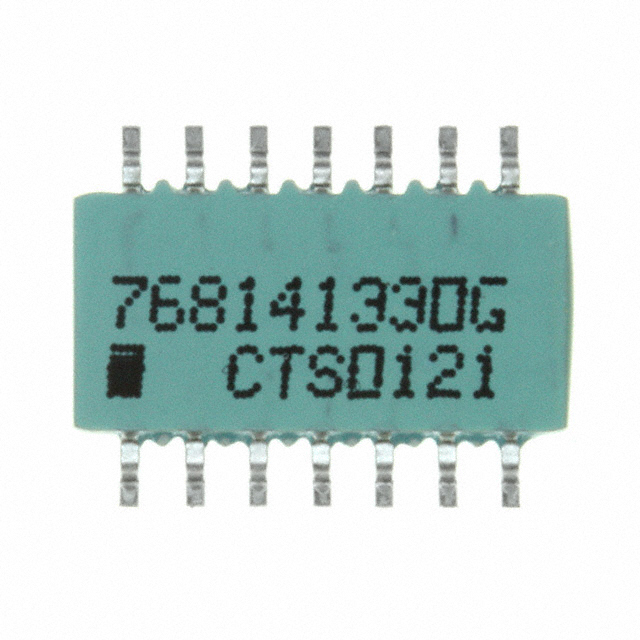

768141330G
ObsoleteCTS Resistor Products
RES ARRAY 13 RES 33 OHM 14SOIC
768141330G
ObsoleteCTS Resistor Products
RES ARRAY 13 RES 33 OHM 14SOIC
Description
General part information
768141330G
33 Ohm ±2% 100mW Power Per Element Bussed 13 Resistor Network/Array ±200ppm/°C 14-SOIC (0.220", 5.59mm Width)
Technical Specifications
Parameters and characteristics for this part
| Specification | 768141330G |
|---|---|
| Circuit Type | Bussed |
| Height - Seated (Max) | 0.071 in |
| Mounting Type | Surface Mount |
| Number of Pins | 14 pins |
| Number of Resistors | 13 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package Length | 0.22 " |
| Package Name | 14-SOIC |
| Package Width | 5.59 mm |
| Power Per Element | 100 mW |
| Resistance | 33 Ohms |
| Size / Dimension Length | 0.39 in |
| Size / Dimension Width | 0.22 in |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 2 % |
