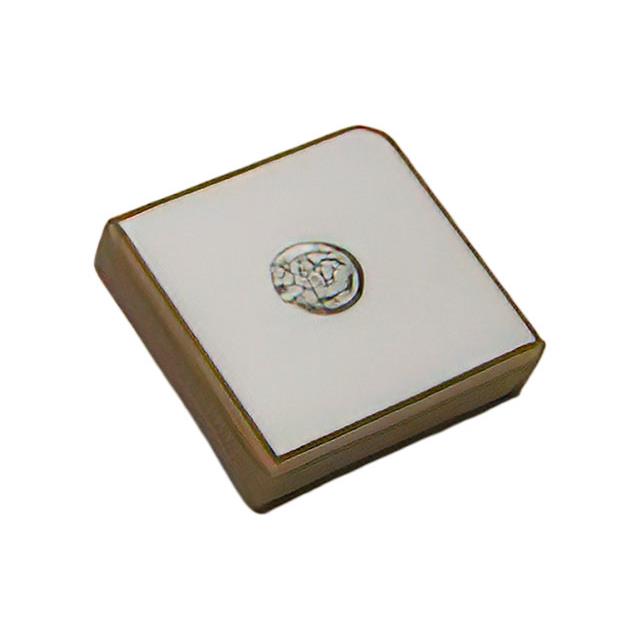

ANT1212B00DT1575S

Active

Pulse Electronics

ANTENNA PATCH GPS CP PIN DIAG.

Search across all available documentation for this part.

Active

Pulse Electronics

ANTENNA PATCH GPS CP PIN DIAG.

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF ANTENNA GPS Ceramic Patch Pin Adhesive

Technical documentation and resources

No documents available

Part	Height (Max)	Height (Max) [Max] [z]	Frequency Range [Max]	Frequency Range [Min]	Antenna Type	Frequency Group [Max]	Frequency Group [Min]	Frequency Group	Applications	Number of Bands	Frequency (Center/Band)	Termination	RF Family/Standard	VSWR	Mounting Type	Gain
Pulse Electronics ANT1212B00DT1575S	4 mm	0.157 in	1.583 GHz	1.577 GHz	Ceramic Patch	2 GHz	1 GHz	UHF	GPS	1	1.58 GHz	Pin	Navigation	2	Adhesive	-1.5 dBi
Pulse Electronics ANT1212B00BT2400S	4 mm	0.157 in	2.5 GHz	2.4 GHz	Ceramic Patch				General Purpose	1		Solder		3	Surface Mount	4 dBi
