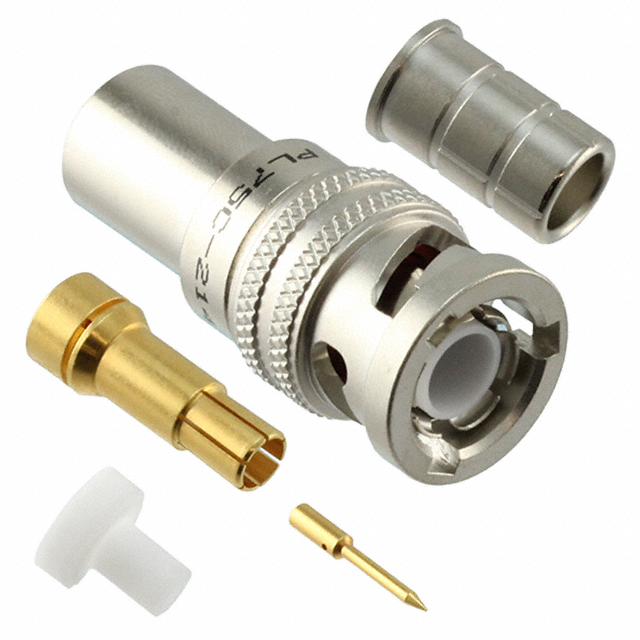

PL75C-214

Active

Cinch Connectivity Solutions Trompeter

CONN TRB PLUG STR CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

PL75C-214

Active

Cinch Connectivity Solutions Trompeter

CONN TRB PLUG STR CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 58.53
		10	$ 45.42
		25	$ 41.27
		50	$ 39.95

Description

General part information

PL75 Series

TRB, Twinaxial/Triaxial Connector Plug, Male Pin (Concentric) Non-Constant Free Hanging (In-Line) Crimp

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PL75C-214	PL75 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	TWC-124-2	TWC-78-1, 250-4045, 293-3930, Microdot 250-4044, Raychem 10614, M27500-22TE2T14, 1100-66F, Raychem 10602, TWC-124-2, TRC-75-1, RC2S06, M27500-22, M17/176-00002, M17/177-00001, Grumman GC875GC1, Raychem 252E0114, Grumman GC875TM24H, Raychem 7528A5314, Microdot 202-3934, Times TRF-59, TWC-124-1A, TRC-50-2
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	Twinaxial/Triaxial, TRB	Twinaxial/Triaxial, TRB
Connector Type	Plug, Male Pin (Concentric)	Plug, Male Pin (Concentric)
Contact Termination	Crimp	Crimp, Solder
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Three Lug	Three Lug
Frequency - Max [Max]	500 MHz	500 MHz
Housing Color	Silver	Silver
Impedance	Non-Constant	Non-Constant
Includes	1 Strain Relief, 1 Connector	1 Strain Relief, 1 Connector, 1 Heat Shrink
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Crimp	Crimp, Wrench Clamp
Voltage Rating	400 V	400 V

PL75 Series

CONN TRB PLUG STR CRIMP

Part	Impedance	Voltage Rating	Body Material	Cable Group	Connector Style	Connector Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Number of Ports	Center Contact Plating	Mounting Type	Shield Termination	Center Contact Material	Body Finish	Mating Cycles	Fastening Type	Frequency - Max [Max]	Contact Termination	Includes
Cinch Connectivity Solutions Trompeter PL75MC-202	Non-Constant	400 V	Brass	TWC-78-1	TRB, Twinaxial/Triaxial	Plug, Male Pin (Concentric)	Three Lug	-65 ░C	165 °C	Silver	1	Gold	Free Hanging (In-Line)	Crimp	Beryllium Copper	Nickel	500	Bayonet Lock	500 MHz	Crimp
Cinch Connectivity Solutions Trompeter PL75-43	Non-Constant	400 V	Brass	250-4045, 293-3930, Microdot 250-4044	TRB, Twinaxial/Triaxial	Plug, Male Pin (Concentric)	Three Lug	-65 ░C	165 °C	Silver	1	Gold	Free Hanging (In-Line)	Wrench Clamp	Beryllium Copper	Nickel	500	Bayonet Lock	500 MHz	Solder
Cinch Connectivity Solutions Trompeter PL75C-221	Non-Constant	400 V	Brass	Raychem 10614	TRB, Twinaxial/Triaxial	Plug, Male Pin (Concentric)	Three Lug	-65 ░C	165 °C	Silver	1	Gold	Free Hanging (In-Line)	Crimp	Beryllium Copper	Nickel	500	Bayonet Lock	500 MHz	Crimp	1 Connector, 1 Heat Shrink, 1 Strain Relief
Cinch Connectivity Solutions Trompeter PL75-45	Non-Constant	400 V	Brass	1100-66F, M27500-22TE2T14	TRB, Twinaxial/Triaxial	Plug, Male Pin (Concentric)	Three Lug	-65 ░C	165 °C	Silver	1	Gold	Free Hanging (In-Line)	Wrench Clamp	Beryllium Copper	Nickel	500	Bayonet Lock	500 MHz	Solder
Cinch Connectivity Solutions Trompeter PL75C-204	Non-Constant	400 V	Brass	Raychem 10602	TRB, Twinaxial/Triaxial	Plug, Male Pin (Concentric)	Three Lug	-65 ░C	165 °C	Silver	1	Gold	Free Hanging (In-Line)	Crimp	Beryllium Copper	Nickel	500	Bayonet Lock	500 MHz	Crimp	1 Connector, 1 Heat Shrink, 1 Strain Relief
Cinch Connectivity Solutions Trompeter PL75C-214	Non-Constant	400 V	Brass	TWC-124-2	TRB, Twinaxial/Triaxial	Plug, Male Pin (Concentric)	Three Lug	-65 ░C	165 °C	Silver	1	Gold	Free Hanging (In-Line)	Crimp	Beryllium Copper	Nickel	500	Bayonet Lock	500 MHz	Crimp	1 Connector, 1 Strain Relief
Cinch Connectivity Solutions Trompeter PL75C-307	Non-Constant	400 V	Brass	TRC-75-1	TRB, Twinaxial/Triaxial	Plug, Male Pin (Concentric)	Three Lug	-65 ░C	165 °C	Silver	1	Gold	Free Hanging (In-Line)	Crimp	Beryllium Copper	Nickel	500	Bayonet Lock	500 MHz	Crimp	1 Connector, 1 Heat Shrink, 1 Strain Relief
Cinch Connectivity Solutions Trompeter PL75MC-217	Non-Constant	400 V	Brass	M27500-22, RC2S06	TRB, Twinaxial/Triaxial	Plug, Male Pin (Concentric)	Three Lug	-65 ░C	165 °C	Silver	1	Gold	Free Hanging (In-Line)	Crimp	Beryllium Copper	Nickel	500	Bayonet Lock	500 MHz	Crimp
Cinch Connectivity Solutions Trompeter PL75MC-201	Non-Constant	400 V	Brass	M17/176-00002	TRB, Twinaxial/Triaxial	Plug, Male Pin (Concentric)	Three Lug	-65 ░C	165 °C	Silver	1	Gold	Free Hanging (In-Line)	Crimp	Beryllium Copper	Nickel	500	Bayonet Lock	500 MHz	Crimp
Cinch Connectivity Solutions Trompeter PL75C-305	Non-Constant	400 V	Brass	M17/177-00001	TRB, Twinaxial/Triaxial	Plug, Male Pin (Concentric)	Three Lug	-65 ░C	165 °C	Silver	1	Gold	Free Hanging (In-Line)	Crimp	Beryllium Copper	Nickel	500	Bayonet Lock	500 MHz	Crimp	1 Connector, 1 Heat Shrink, 1 Strain Relief
