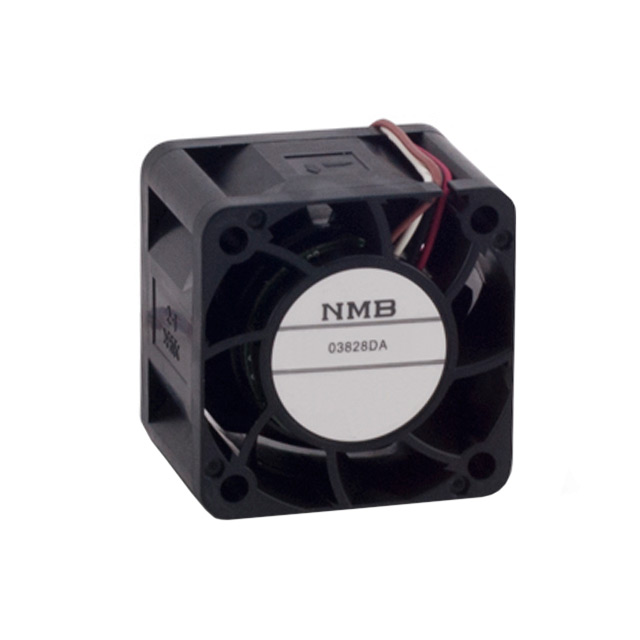

03828DA-12R-AU-00

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 12 V, SQUARE, 38 MM, 28 MM, BALL BEARING, 21.54 CFM

Search across all available documentation for this part.

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 12 V, SQUARE, 38 MM, 28 MM, BALL BEARING, 21.54 CFM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	03828DA-12R-AU-00	03828DA Series

Air Flow	0.602 m³/min	0.543 - 0.602 m³/min
Air Flow	21.5 CFM	19.4 - 21.5 CFM
Approval Agency	-	VDE, UL, cUL
Bearing Type	Ball	Ball
Current Rating (Amps)	0.63 A	0.63 - 490 A
Fan Type	Tubeaxial	Tubeaxial
Features	Auto Restart, Speed Sensor (Tach), PWM Control	Auto Restart, Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	70000 Hrs	70000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	58 dB(A)	55 - 58 dB(A)
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	7.56 W	5.9 - 7.56 W
RPM	22000 RPM	20000 - 22000 RPM
Size / Dimension [x]	38 mm	38 mm
Size / Dimension [z]	38 mm	38 mm
Static Pressure	2.61 in H2O	2.16 - 2.61 in H2O
Static Pressure	650.1 Pa	540 - 650.1 Pa
Termination	4 Wire Leads	4 Wire Leads
Voltage - Rated	12 VDC	12 VDC
Voltage Range [Max]	13.2 VDC	13.2 VDC
Voltage Range [Min]	7 V	7 V
Weight	-	47.17 g
Weight	-	0.104 lb
Width [y]	28 mm	28 mm

DC AXIAL FAN, 12 V, SQUARE, 38 MM, 28 MM, BALL BEARING, 21.54 CFM

Part	Termination	Static Pressure	Static Pressure	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Fan Type	Voltage Range [Max]	Voltage Range [Min]	Lifetime @ Temp.	RPM	Features	Current Rating (Amps)	Power (Watts)	Noise	Width [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Rated	Material - Frame	Bearing Type	Material - Blade	Air Flow	Air Flow	Weight	Weight	Approval Agency
NMB TECHNOLOGIES 03828DA-12R-AU-00	4 Wire Leads	2.61 in H2O	650.1 Pa	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	13.2 VDC	7 V	70000 Hrs	22000 RPM	Auto Restart, PWM Control, Speed Sensor (Tach)	0.63 A	7.56 W	58 dB(A)	28 mm	38 mm	38 mm	12 VDC	Plastic	Ball	Plastic	0.602 m³/min	21.5 CFM
NMB TECHNOLOGIES 03828DA-12Q-AU-00	4 Wire Leads	2.16 in H2O	540 Pa	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	13.2 VDC	7 V	70000 Hrs	20000 RPM	Auto Restart, PWM Control, Speed Sensor (Tach)	490 mA	5.9 W	55 dB	28 mm	38 mm	38 mm	12 VDC	Plastic	Ball	Plastic	0.543 m³/min	19.4 CFM	47.17 g	0.104 lb	cUL, UL, VDE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 38mm L x 38mm H Ball 21.5 CFM (0.602m³/min) 4 Wire Leads
