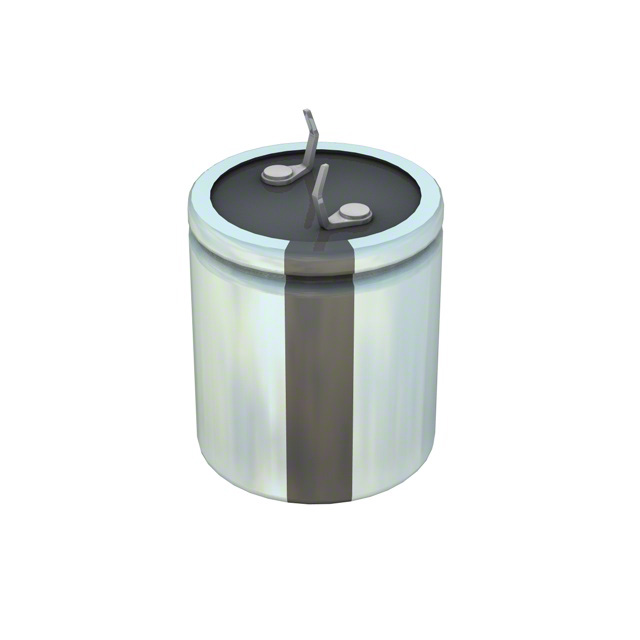

Specification	LPX820M400A1P3

Applications	General Purpose
Capacitance	82 µF
ESR (Equivalent Series Resistance)	2.426 Ohm
Height - Seated (Max)	0.984 in
Lead Spacing	0.394 in
Lifetime	1000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can - Snap-In, Radial
Polarization	Polar
Ripple Current	720 mA, 600 mA
Size / Dimension Diameter	0.866 in
Tolerance	20 %
Voltage - Rated	400 V
