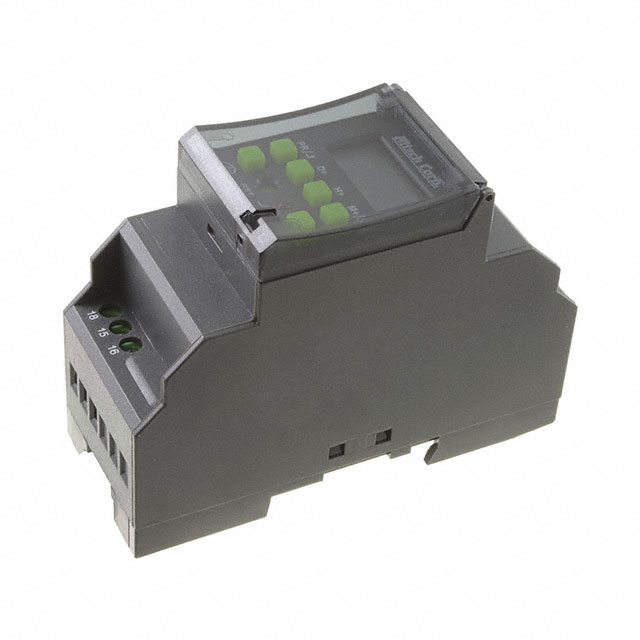

ATS-P120

Active

Altech Corporation

RELAY TIME DELAY 59SEC 16A 240V

Search across all available documentation for this part.

Active

Altech Corporation

RELAY TIME DELAY 59SEC 16A 240V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ATS-P120	ATS-P Series

Contact Rating @ Voltage	16 A, 240 VAC	16 - 240 A
Delay Time [Max]	59 Sec	59 Sec
Delay Time [Min]	1 Sec	1 Sec
Function	Programmable (Multi-Function)	Programmable (Multi-Function)
Mounting Type	DIN Rail	DIN Rail
Relay Type	Mechanical Relay	Mechanical Relay
Termination Style	Screw Terminal	Screw Terminal
Timing Adjustment Method	Up/Down Digit Keys	Up/Down Digit Keys
Timing Initiate Method	Input Voltage	Input Voltage
Voltage - Supply	-	24 VDC
Voltage - Supply [Max]	240 VAC	240 VAC
Voltage - Supply [Min]	110 VAC	110 VAC

RELAY TIME DELAY 59SEC 16A 240V

Part	Delay Time [Max]	Delay Time [Min]	Mounting Type	Termination Style	Timing Adjustment Method	Contact Rating @ Voltage	Function	Voltage - Supply [Min]	Voltage - Supply [Max]	Relay Type	Timing Initiate Method	Voltage - Supply
Altech Corporation ATS-P120	59 Sec	1 Sec	DIN Rail	Screw Terminal	Up/Down Digit Keys	16 A, 240 VAC	Programmable (Multi-Function)	110 VAC	240 VAC	Mechanical Relay	Input Voltage
Altech Corporation ATS-P24	59 Sec	1 Sec	DIN Rail	Screw Terminal	Up/Down Digit Keys	16 A, 24 VDC, 240 VAC	Programmable (Multi-Function)			Mechanical Relay	Input Voltage	24 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Programmable (Multi-Function) Time Delay Relay SPDT (1 Form C) 1 Sec ~ 59 Sec Delay 16A @ 240VAC DIN Rail
