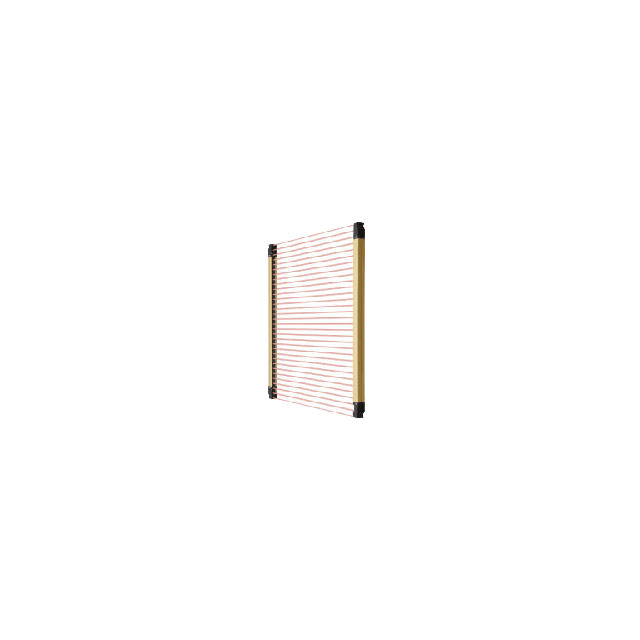

Specification	SF4D-F79

Beam Pitch	10 mm
Detection Capability	14 mm
Features	Muting Function, Blanking
Ingress Protection Description	Dust Tight, Waterproof, NEMA 13, Water Resistant
Ingress Protection IP Rating	IP65, IP67
Number of Beams	79
Operating Range (Max)	12 m
Operating Range (Min)	0.2 m
Operating Temperature (Max)	55 °C
Operating Temperature (Min)	-10 °C
Protection	Finger
Protective Height	790 mm
Voltage - Supply	24 VDC
