KAL50JB10R0
ActiveStackpole Electronics Inc
RES CHAS MNT 10 OHM 5% 50W
KAL50JB10R0
ActiveStackpole Electronics Inc
RES CHAS MNT 10 OHM 5% 50W
Description
General part information
KAL50JB10R0

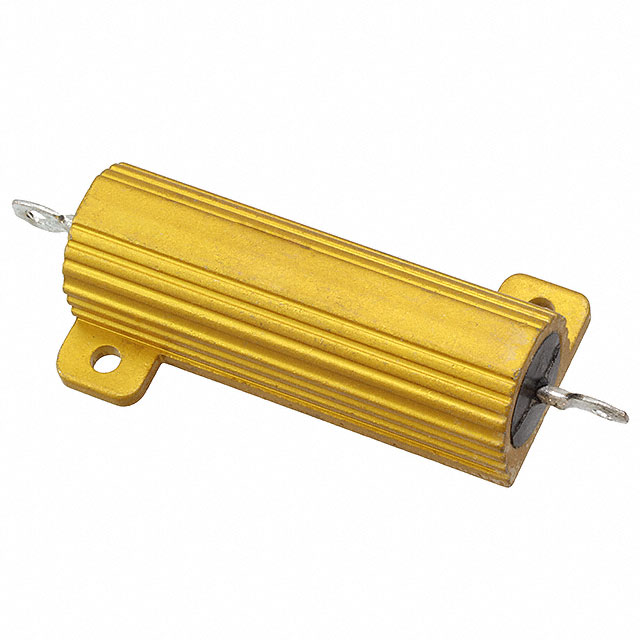

10 Ohms ±5% 50W Wirewound Chassis Mount Resistor
Technical Specifications
Parameters and characteristics for this part
| Specification | KAL50JB10R0 |
|---|---|
| Coating | Aluminum |
| Composition | Wirewound |
| Features | Moisture Resistant |
| Height - Seated (Max) | 0.641 in |
| Housing Type | Aluminum |
| Lead Style | Solder Lugs |
| Mounting Feature | Flanges |
| Operating Temperature (Max) | 275 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Box, Axial |
| Power (Watts) | 50 W |
| Resistance | 10 Ohms |
| Size / Dimension Length | 1.968 in |
| Size / Dimension Width | 1.14 in |
| Temperature Coefficient | 30 ppm/¯C |
| Tolerance | 5 % |
