P1056 WH002

Active

ALPHA WIRE

FIT WIRE MANAGEMENT /500 FT ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

ALPHA WIRE

FIT WIRE MANAGEMENT /500 FT ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	P1056 WH002	P1056 Series

Abrasion Protection	Abrasion Resistant	Abrasion Resistant
Color	White	White, Clear
Diameter - Inside [diameter]	4.11 mm	4.11 mm
Diameter - Inside [diameter]	0.162 in	0.162 in
Diameter - Outside [diameter]	0.218 "	0.218 "
Diameter - Outside [diameter]	5.54 mm	5.54 mm
Environment Protection	UV Resistant, Corrosion Resistant	UV Resistant, Corrosion Resistant
Heat Protection	Heat Resistant	Heat Resistant
Length	-	100 ft
Length	-	30.48 m
Length [x]	500 '	500 '
Length [x]	152.4 m	152.4 m
Liquid Protection	Oil Resistant	Oil Resistant
Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Material Flammability Rating	UL 224 VW-1	UL 224 VW-1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-20 C	-20 C
Type	Solid Tubing	Solid Tubing
Type Attributes	Smooth	Smooth
Wall Thickness [custom]	0.51 mm	0.51 mm
Wall Thickness [custom]	0.02 in	0.02 in

FIT WIRE MANAGEMENT /500 FT ROHS COMPLIANT: YES

Part	Heat Protection	Length [x]	Length [x]	Type Attributes	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Material	Wall Thickness [custom]	Wall Thickness [custom]	Abrasion Protection	Environment Protection	Operating Temperature [Min]	Operating Temperature [Max]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Type	Liquid Protection	Material Flammability Rating	Color	Length	Length
ALPHA WIRE P1056 WH002	Heat Resistant	500 '	152.4 m	Smooth	4.11 mm	0.162 in	Poly-Vinyl Chloride (PVC)	0.51 mm	0.02 in	Abrasion Resistant	Corrosion Resistant, UV Resistant	-20 C	105 ░C	0.218 "	5.54 mm	Solid Tubing	Oil Resistant	UL 224 VW-1	White
ALPHA WIRE P1056 WH005	Heat Resistant			Smooth	4.11 mm	0.162 in	Poly-Vinyl Chloride (PVC)	0.51 mm	0.02 in	Abrasion Resistant	Corrosion Resistant, UV Resistant	-20 C	105 ░C	0.218 "	5.54 mm	Solid Tubing	Oil Resistant	UL 224 VW-1	White	100 ft	30.48 m
ALPHA WIRE P1056 CL005	Heat Resistant			Smooth	4.11 mm	0.162 in	Poly-Vinyl Chloride (PVC)	0.51 mm	0.02 in	Abrasion Resistant	Corrosion Resistant, UV Resistant	-20 C	105 ░C	0.218 "	5.54 mm	Solid Tubing	Oil Resistant	UL 224 VW-1	Clear	100 ft	30.48 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

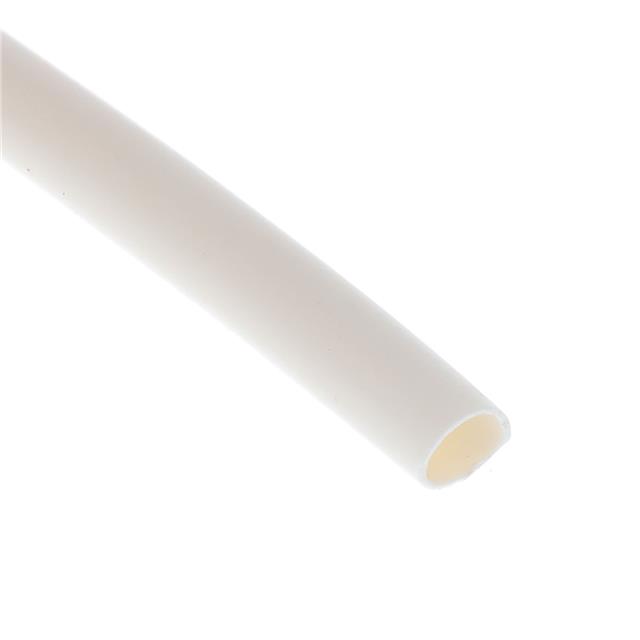

White Poly-Vinyl Chloride (PVC) Smooth Solid Tubing 0.162" (4.11mm) 500' (152.40m)
