5-104693-3
ActiveTE Connectivity AMP Connectors

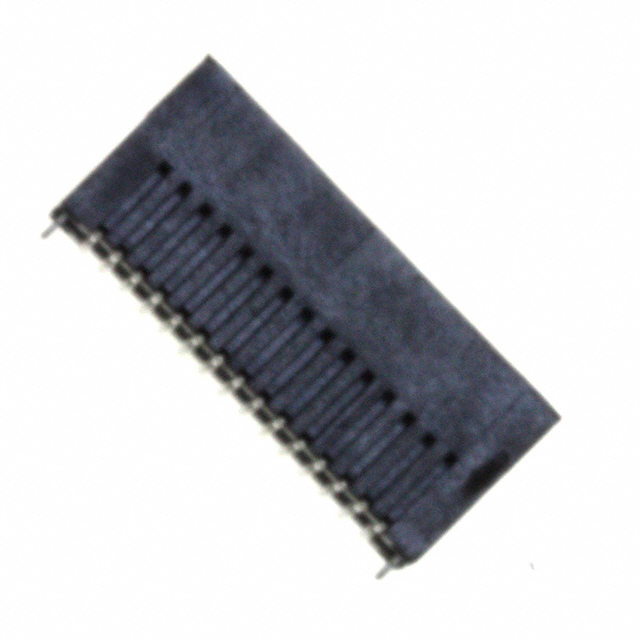

CONN HEADER SMD 30POS 1.27MM
Deep-Dive with AI
Search across all available documentation for this part.
5-104693-3
ActiveTE Connectivity AMP Connectors
CONN HEADER SMD 30POS 1.27MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5-104693-3 | 104693 Series |
|---|---|---|
| Applications | Military, Telecommunications, General Purpose, Automotive, Medical | Military, Telecommunications, General Purpose, Automotive, Medical |
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin | Tin-Lead, Tin |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | 150 Áin | 150 Áin |
| Contact Finish Thickness - Post | 3.81 Ám | 3.81 Ám |
| Contact Length - Mating | 3.05 mm | 3.05 mm |
| Contact Length - Mating | 0.12 in | 0.12 in |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Shape | Circular | Circular |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 500 mA | 500 mA |
| Fastening Type | Push-Pull | Push-Pull |
| Insulation Color | Black | Black |
| Insulation Height | 9.33 mm | 9.33 mm |
| Insulation Height | 0.367 in | 0.367 in |
| Insulation Material | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| Mated Stacking Heights | 9.91 mm | 9.91 mm |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Positions | 30 | 10 - 80 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch - Mating | 0.05 in | 0.05 in |
| Pitch - Mating | 1.27 mm | 1.27 mm |
| Row Spacing - Mating | 0.05 in | 0.05 in |
| Row Spacing - Mating | 1.27 mm | 1.27 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Termination | Solder | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 7.00 | |
| 24 | $ 6.10 | |||
| 120 | $ 5.43 | |||
| 504 | $ 5.07 | |||
| 1008 | $ 4.53 | |||
104693 Series
CONN HEADER SMD 70POS 1.27MM
| Part | Contact Material | Shrouding | Mounting Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Applications | Row Spacing - Mating | Row Spacing - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Material Flammability Rating | Contact Type | Number of Rows | Connector Type | Current Rating (Amps) | Number of Positions Loaded | Termination | Insulation Color | Mated Stacking Heights | Insulation Height | Insulation Height | Operating Temperature [Min] | Operating Temperature [Max] | Contact Shape | Fastening Type | Insulation Material | Number of Positions | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Contact Length - Mating | Contact Length - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 104693-7 | Phosphor Bronze | Shrouded - 4 Wall | Surface Mount | 150 Áin | 3.81 Ám | Automotive, General Purpose, Medical, Military, Telecommunications | 0.05 in | 1.27 mm | 30 Áin | 0.76 Ám | Gold | UL94 V-0 | Male Pin | 2 | Header | 500 mA | All | Solder | Black | 9.91 mm | 9.33 mm | 0.367 in | -65 ░C | 105 ░C | Circular | Push-Pull | Liquid Crystal Polymer (LCP) | 70 | 0.05 in | 1.27 mm | Tin-Lead | 3.05 mm | 0.12 in |
TE Connectivity AMP Connectors 104693-6 | Phosphor Bronze | Shrouded - 4 Wall | Surface Mount | 150 Áin | 3.81 Ám | Automotive, General Purpose, Medical, Military, Telecommunications | 0.05 in | 1.27 mm | 30 Áin | 0.76 Ám | Gold | UL94 V-0 | Male Pin | 2 | Header | 500 mA | All | Solder | Black | 9.91 mm | 9.33 mm | 0.367 in | -65 ░C | 105 ░C | Circular | Push-Pull | Liquid Crystal Polymer (LCP) | 60 | 0.05 in | 1.27 mm | Tin-Lead | 3.05 mm | 0.12 in |
TE Connectivity AMP Connectors 5-104693-3 | Phosphor Bronze | Shrouded - 4 Wall | Surface Mount | 150 Áin | 3.81 Ám | Automotive, General Purpose, Medical, Military, Telecommunications | 0.05 in | 1.27 mm | 30 Áin | 0.76 Ám | Gold | UL94 V-0 | Male Pin | 2 | Header | 500 mA | All | Solder | Black | 9.91 mm | 9.33 mm | 0.367 in | -65 ░C | 105 ░C | Circular | Push-Pull | Liquid Crystal Polymer (LCP) | 30 | 0.05 in | 1.27 mm | Tin | 3.05 mm | 0.12 in |
TE Connectivity AMP Connectors 5-104693-4 | Phosphor Bronze | Shrouded - 4 Wall | Surface Mount | 150 Áin | 3.81 Ám | Automotive, General Purpose, Medical, Military, Telecommunications | 0.05 in | 1.27 mm | 30 Áin | 0.76 Ám | Gold | UL94 V-0 | Male Pin | 2 | Header | 500 mA | All | Solder | Black | 9.91 mm | 9.33 mm | 0.367 in | -65 ░C | 105 ░C | Circular | Push-Pull | Liquid Crystal Polymer (LCP) | 40 | 0.05 in | 1.27 mm | Tin | 3.05 mm | 0.12 in |
TE Connectivity AMP Connectors 5-104693-8 | Phosphor Bronze | Shrouded - 4 Wall | Surface Mount | 150 Áin | 3.81 Ám | Automotive, General Purpose, Medical, Military, Telecommunications | 0.05 in | 1.27 mm | 30 Áin | 0.76 Ám | Gold | UL94 V-0 | Male Pin | 2 | Header | 500 mA | All | Solder | Black | 9.91 mm | 9.33 mm | 0.367 in | -65 ░C | 105 ░C | Circular | Push-Pull | Liquid Crystal Polymer (LCP) | 80 | 0.05 in | 1.27 mm | Tin | 3.05 mm | 0.12 in |
TE Connectivity AMP Connectors 5-104693-1 | Phosphor Bronze | Shrouded - 4 Wall | Surface Mount | 150 Áin | 3.81 Ám | Automotive, General Purpose, Medical, Military, Telecommunications | 0.05 in | 1.27 mm | 30 Áin | 0.76 Ám | Gold | UL94 V-0 | Male Pin | 2 | Header | 500 mA | All | Solder | Black | 9.91 mm | 9.33 mm | 0.367 in | -65 ░C | 105 ░C | Circular | Push-Pull | Liquid Crystal Polymer (LCP) | 10 | 0.05 in | 1.27 mm | Tin | 3.05 mm | 0.12 in |
TE Connectivity AMP Connectors 5-104693-7 | Phosphor Bronze | Shrouded - 4 Wall | Surface Mount | 150 Áin | 3.81 Ám | Automotive, General Purpose, Medical, Military, Telecommunications | 0.05 in | 1.27 mm | 30 Áin | 0.76 Ám | Gold | UL94 V-0 | Male Pin | 2 | Header | 500 mA | All | Solder | Black | 9.91 mm | 9.33 mm | 0.367 in | -65 ░C | 105 ░C | Circular | Push-Pull | Liquid Crystal Polymer (LCP) | 70 | 0.05 in | 1.27 mm | Tin | 3.05 mm | 0.12 in |
TE Connectivity AMP Connectors 104693-4 | Phosphor Bronze | Shrouded - 4 Wall | Surface Mount | 150 Áin | 3.81 Ám | Automotive, General Purpose, Medical, Military, Telecommunications | 0.05 in | 1.27 mm | 30 Áin | 0.76 Ám | Gold | UL94 V-0 | Male Pin | 2 | Header | 500 mA | All | Solder | Black | 9.91 mm | 9.33 mm | 0.367 in | -65 ░C | 105 ░C | Circular | Push-Pull | Liquid Crystal Polymer (LCP) | 40 | 0.05 in | 1.27 mm | Tin-Lead | 3.05 mm | 0.12 in |
TE Connectivity AMP Connectors 104693-3 | Phosphor Bronze | Shrouded - 4 Wall | Surface Mount | 150 Áin | 3.81 Ám | Automotive, General Purpose, Medical, Military, Telecommunications | 0.05 in | 1.27 mm | 30 Áin | 0.76 Ám | Gold | UL94 V-0 | Male Pin | 2 | Header | 500 mA | All | Solder | Black | 9.91 mm | 9.33 mm | 0.367 in | -65 ░C | 105 ░C | Circular | Push-Pull | Liquid Crystal Polymer (LCP) | 30 | 0.05 in | 1.27 mm | Tin-Lead | 3.05 mm | 0.12 in |
TE Connectivity AMP Connectors 5-104693-2 | Phosphor Bronze | Shrouded - 4 Wall | Surface Mount | 150 Áin | 3.81 Ám | Automotive, General Purpose, Medical, Military, Telecommunications | 0.05 in | 1.27 mm | 30 Áin | 0.76 Ám | Gold | UL94 V-0 | Male Pin | 2 | Header | 500 mA | All | Solder | Black | 9.91 mm | 9.33 mm | 0.367 in | -65 ░C | 105 ░C | Circular | Push-Pull | Liquid Crystal Polymer (LCP) | 20 | 0.05 in | 1.27 mm | Tin | 3.05 mm | 0.12 in |
Description
General part information
104693 Series
Connector Header Surface Mount 30 position 0.050" (1.27mm)
Documents
Technical documentation and resources
No documents available
