NRPN322MAMP-RC

Active

Sullins Connector Solutions

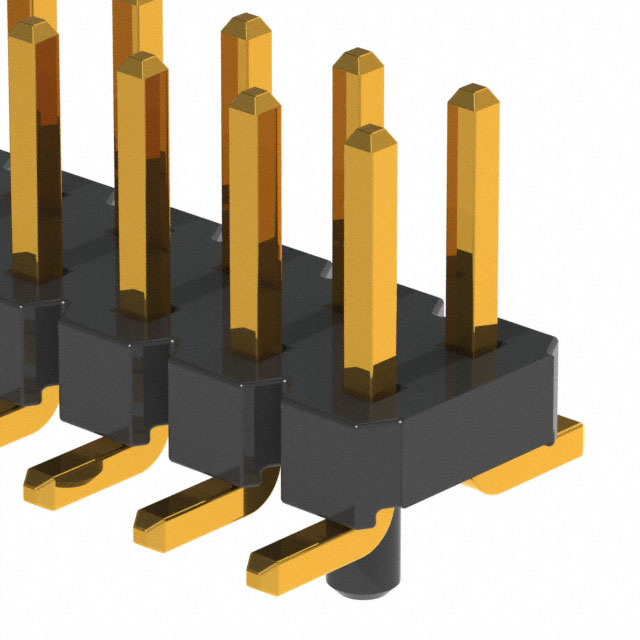

CONN HEADER SMD 64POS 2MM

Search across all available documentation for this part.

Active

Sullins Connector Solutions

CONN HEADER SMD 64POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	NRPN322MAMP-RC

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	0.141 in
Contact Length - Mating	3.6 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Features	Board Guide
Insulation Height	1.5 mm
Insulation Height	0.059 "
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	64
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	150 VDC

Part	Features	Style	Number of Rows	Contact Type	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Insulation Material	Fastening Type	Number of Positions	Contact Finish - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Connector Type	Shrouding	Contact Material	Termination	Voltage Rating	Current Rating (Amps)	Contact Finish Thickness - Mating	Mounting Type	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Finish - Post
Sullins Connector Solutions NRPN322MAMP-RC	Board Guide	Board to Board Cable	2	Male Pin	Flash	1.5 mm	0.059 "	0.141 in	3.6 mm	All	Nylon 6T Polyamide (PA6T)	Push-Pull	64	Gold	0.079 in	2 mm	Header	Unshrouded	Brass	Solder	150 VDC	2 A	Flash	Surface Mount	Square	0.079 in	2 mm	-40 °C	105 ░C	UL94 V-0	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1000	$ 3.07

General part information

Connector Header Surface Mount 64 position 0.079" (2.00mm)
