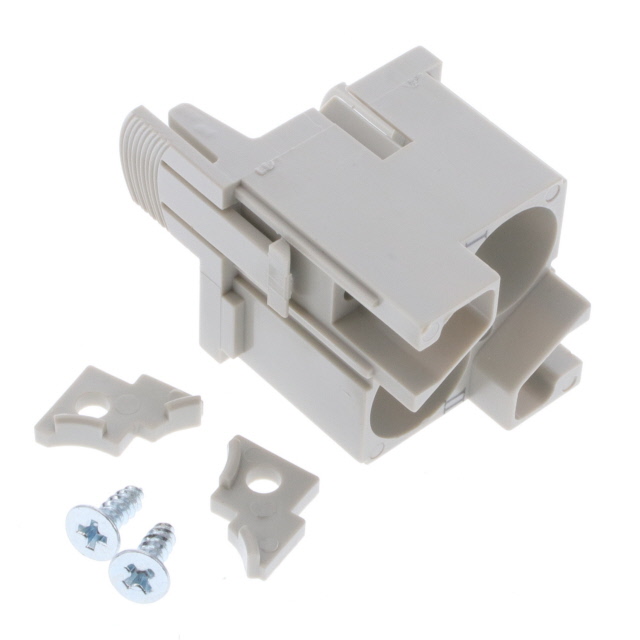

HMN-Q3-M
ActiveTE Connectivity AMP Connectors
HMN-Q3-M
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HMN-Q3-M
ActiveTE Connectivity AMP Connectors
HMN-Q3-M
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | HMN-Q3-M | HMN Series |
|---|---|---|
| Connector Type | Module | Module, Module without Contacts, D-Sub |
| Contact Type | - | CMF, CAM, DAM, CSM, CEF, DEF, CNF, DDF, CDF, CEM, DEM, DMF, CMM, DAF, CAF |
| Current Rating (Amps) | - | 5 - 200 A |
| Gender | - | Female, Male |
| Housing Material | Polycarbonate (PC) | Polycarbonate (PC) |
| Material Flammability Rating | - | EN45545 |
| Number of Positions | - | 1 - 20 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Style | Bottom Entry | Bottom Entry |
| Termination Style | - | Crimp |
| Voltage Rating | - | 50 - 1000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.01 | |
| 12 | $ 3.52 | |||
| 30 | $ 3.42 | |||
| 54 | $ 3.35 | |||
| 102 | $ 3.24 | |||
HMN Series
HMN-Q3-F
| Part | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Style | Housing Material | Voltage Rating | Current Rating (Amps) | Number of Positions | Material Flammability Rating | Termination Style | Contact Type | Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors HMN-Q3-F | Module | 125 °C | -40 °C | Bottom Entry | Polycarbonate (PC) | |||||||
TE Connectivity AMP Connectors HMN-Q3-M | Module | 125 °C | -40 °C | Bottom Entry | Polycarbonate (PC) | |||||||
TE Connectivity AMP Connectors HMN-004-F | Module without Contacts | 125 °C | -40 °C | Polycarbonate (PC) | 830 V | 40 A | 4 | EN45545 | Crimp | CMF | Female | |
TE Connectivity AMP Connectors HMN-025-M | Module without Contacts | 125 °C | -40 °C | Polycarbonate (PC) | 50 V | 5 A | EN45545 | Crimp | CAM, DAM | Male | ||
TE Connectivity AMP Connectors HMN-002-MC | Module without Contacts | 125 °C | -40 °C | Polycarbonate (PC) | 1000 VDC | 70 A | 2 | EN45545 | Crimp | CSM | Male | |
TE Connectivity AMP Connectors HMN-020-F | Module without Contacts | 125 °C | -40 °C | Polycarbonate (PC) | 500 V | 16 A | 20 | EN45545 | Crimp | CEF, DEF | Female | |
TE Connectivity AMP Connectors HMN-001-MC | Module without Contacts | 125 °C | -40 °C | Polycarbonate (PC) | 1000 VDC | 200 A | 1 | EN45545 | Crimp | CNF | Male | |
TE Connectivity AMP Connectors HMN-D2-FC | Module without Contacts | 125 °C | -40 °C | Polycarbonate (PC) | 1000 VDC | 100 A | 2 | EN45545 | Crimp | CNF | Female | |
TE Connectivity AMP Connectors HMN-017-F | Module without Contacts | 125 °C | -40 °C | Polycarbonate (PC) | 160 V | 10 A | EN45545 | Crimp | CDF, DDF | Female | ||
TE Connectivity AMP Connectors HMN-006-M | Module without Contacts | 125 °C | -40 °C | Polycarbonate (PC) | 500 V | 16 A | 6 | EN45545 | Crimp | CEM, DEM | Male | |
TE Connectivity AMP Connectors HMN-003-F | Module without Contacts | 125 °C | -40 °C | Polycarbonate (PC) | 690 V | 40 A | EN45545 | Crimp | CMF, DMF | Female | ||
TE Connectivity AMP Connectors HMN-009-M | D-Sub, Module | 125 °C | -40 °C | Polycarbonate (PC) | 50 V | 5 A | 9 | EN45545 | Crimp | CAM, DAM | Male | |
TE Connectivity AMP Connectors HMN-Q2-M | Module | 125 °C | -40 °C | Bottom Entry | Polycarbonate (PC) | |||||||
TE Connectivity AMP Connectors HMN-012-F | Module without Contacts | 125 °C | -40 °C | Polycarbonate (PC) | 250 VDC | 10 A | 12 | EN45545 | Crimp | CDF, DDF | Female | |
TE Connectivity AMP Connectors HMN-Q1-F | Module | 125 °C | -40 °C | Bottom Entry | Polycarbonate (PC) | |||||||
TE Connectivity AMP Connectors HMN-003-M | Module without Contacts | 125 °C | -40 °C | Polycarbonate (PC) | 690 V | 40 A | EN45545 | Crimp | CMM | Male | ||
TE Connectivity AMP Connectors HMN-006-PM | Module without Contacts | 125 °C | -40 °C | Polycarbonate (PC) | 830 V | 16 A | 6 | EN45545 | Crimp | CEM, DEM | Male | |
TE Connectivity AMP Connectors HMN-020-M | Module without Contacts | 125 °C | -40 °C | Polycarbonate (PC) | 500 V | 16 A | 20 | EN45545 | Crimp | CEM, DEM | Male | |
TE Connectivity AMP Connectors HMN-025-F | Module without Contacts | 125 °C | -40 °C | Polycarbonate (PC) | 50 V | 5 A | EN45545 | Crimp | CAF, DAF | Female | ||
TE Connectivity AMP Connectors HMN-006-PF | Module without Contacts | 125 °C | -40 °C | Polycarbonate (PC) | 830 V | 16 A | 6 | EN45545 | Crimp | CEF, DEF | Female |
Description
General part information
HMN Series
Module Connector Bottom Entry
