5300

Active

Pomona Electronics

RF / COAXIAL ADAPTER, BNC, JACK, TRIAXIAL, PLUG, STRAIGHT ADAPTER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5300

Active

Pomona Electronics

RF / COAXIAL ADAPTER, BNC, JACK, TRIAXIAL, PLUG, STRAIGHT ADAPTER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5300

Adapter Series	BNC to BNC Triaxial
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	BNC Triaxial Plug, Male Pin
Convert To (Adapter End)	Female Socket, BNC Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Features	Three Lug
Frequency - Max [Max]	500 MHz
Mounting Type	Free Hanging (In-Line)
Style	Straight

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 60.70
	Bulk	1	$ 54.89
		1	$ 24.95
		25	$ 54.39
Newark	Each	1	$ 63.99
		1	$ 25.95
		1	$ 79.32
		1	$ 63.64
		5	$ 57.98
		100	$ 67.42
		500	$ 59.49
		1500	$ 55.52
		3000	$ 51.55

Description

General part information

5300

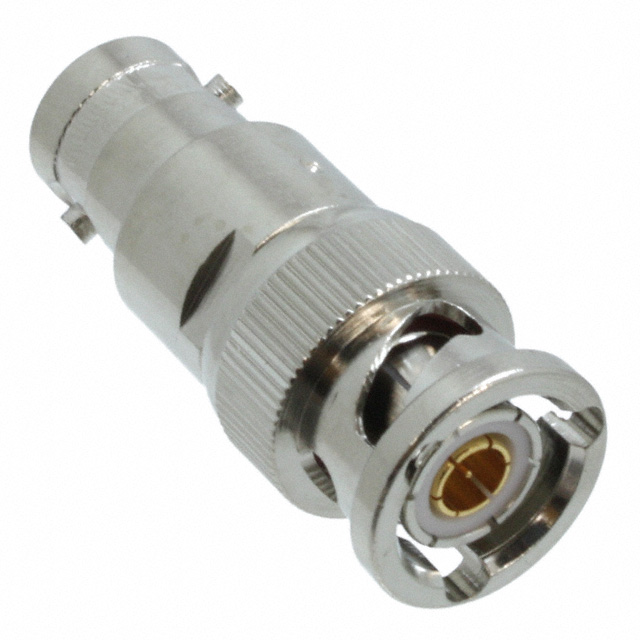

The 5300 is a BNC jack to triaxial 3 lug plug Adapter provides an easy interface. Body and fittings are made of brass with nickel plated finish, gold plated brass male contacts, gold plated beryllium copper female contacts and PTFE dielectric (as per L-P-403).
