1-66361-2
ActiveTE Connectivity AMP Connectors
STANDARD CIRCULAR CONTACTS TIN P
1-66361-2
ActiveTE Connectivity AMP Connectors
STANDARD CIRCULAR CONTACTS TIN P
Description
General part information
AMP Type III+ Series

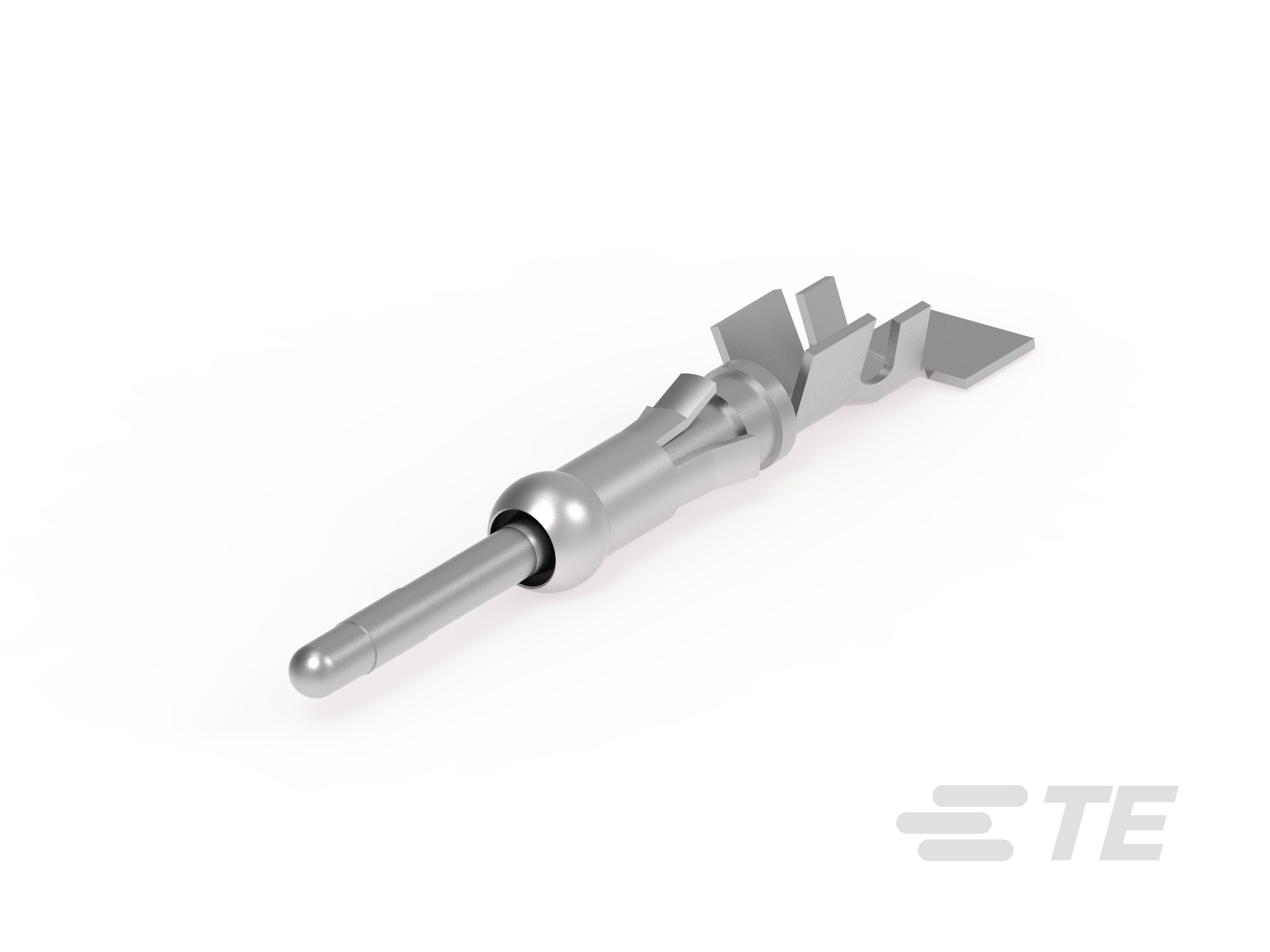

Pin Contact, Tin (Sn), Size 16 Contact Size, 18 – 14 AWG, .8 – 2 mm² Wire, Crimp, Brass, Power & Signal, -55 – 90 °C [-67 – 194 °F], AMP Type III+
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-66361-2 |
|---|---|
| Contact Finish | Tin |
| Contact Finish Thickness | 50 µin |
| Contact Material | Brass |
| Contact Termination | Crimp |
| Pin or Socket | Pin |
| Type | Stamped |
| Wire Gauge (AWG) (Max) | 18 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
Type III+ Stamped and Formed Contacts
Evaluation Testing of PdNi and Au Plated Type III+ Multimate Contacts
Signal Contacts
AMP Circular Connectors for Commercial Signal & Power Applications
Datasheet
M_SERIES_PIN_AND_SOCKET_CONNECTORS
Type III+ (Size 16) Contacts
ENG_CD_66361_K1_baseFilename.pdf
1-66361-2 | Datasheet
