A3BBH-4018M

Active

TE Connectivity AMP Connectors

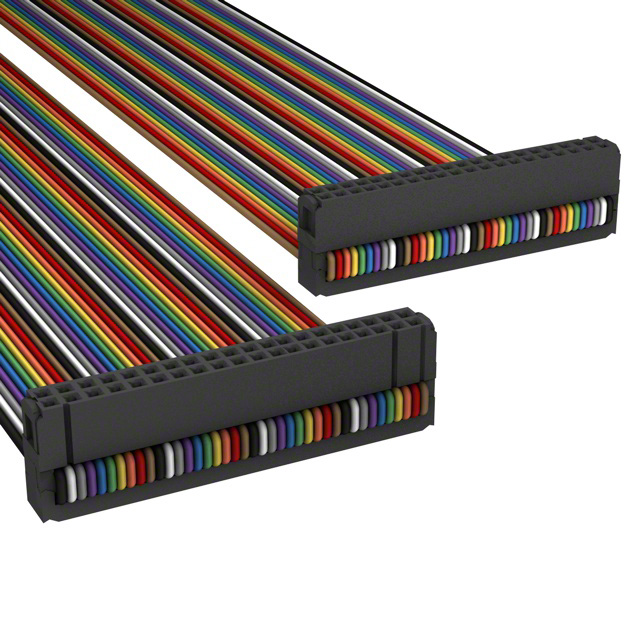

IDC CABLE - ASR40H/AE40M/ASR40H

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRibbon Cable Assembly Length Guide

A3BBH-4018M

Active

TE Connectivity AMP Connectors

IDC CABLE - ASR40H/AE40M/ASR40H

Deep-Dive with AI

DocumentsRibbon Cable Assembly Length Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A3BBH-4018M	A3BBH Series

Cable Termination	IDC	IDC
Color	Ribbon, Multiple	Ribbon, Multiple
Connector Type	Socket to Socket	Socket to Socket
Contact Finish	Gold	Gold
Contact Finish Thickness	15 µin	15 µin
Contact Finish Thickness	0.38 µm	0.38 µm
Features	Strain Relief	Strain Relief
Length	-	152.4 mm
Length	-	6 "
Length	-	0.5 '
Length [x]	457.2 mm	457.2 - 914.4 mm
Length [x]	1.5 ft	1.5 - 3 ft
Number of Positions	40	10 - 64
Number of Positions	-	16
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.65
		10	$ 11.31
		25	$ 10.50
		50	$ 9.92
		100	$ 9.38
		250	$ 8.71
		500	$ 8.24
		1000	$ 7.82

A3BBH Series

IDC CABLE - ASR64H/AE64G/ASR64H

Part	Connector Type	Contact Finish	Length	Length	Length	Contact Finish Thickness	Contact Finish Thickness	Features	Shielding	Number of Positions	Number of Rows	Pitch - Cable	Pitch - Cable	Cable Termination	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Color	Number of Positions
TE Connectivity AMP Connectors A3BBH-6406G	Socket to Socket	Gold	152.4 mm	6 "	0.5 '	15 µin	0.38 µm	Strain Relief	Unshielded	64	2	0.05 "	1.27 mm	IDC	0.1 in	2.54 mm
TE Connectivity AMP Connectors A3BBH-2618G	Socket to Socket	Gold				15 µin	0.38 µm	Strain Relief	Unshielded	26	2	0.05 "	1.27 mm	IDC	0.1 in	2.54 mm	457.2 mm	1.5 ft
TE Connectivity AMP Connectors A3BBH-1018M	Socket to Socket	Gold				15 µin	0.38 µm	Strain Relief	Unshielded	10	2	0.05 "	1.27 mm	IDC	0.1 in	2.54 mm	457.2 mm	1.5 ft	Multiple, Ribbon
TE Connectivity AMP Connectors A3BBH-5036G	Socket to Socket	Gold				15 µin	0.38 µm	Strain Relief	Unshielded	50	2	0.05 "	1.27 mm	IDC	0.1 in	2.54 mm	914.4 mm	3 ft
TE Connectivity AMP Connectors A3BBH-2036G	Socket to Socket	Gold				15 µin	0.38 µm	Strain Relief	Unshielded	20	2	0.05 "	1.27 mm	IDC	0.1 in	2.54 mm	914.4 mm	3 ft
TE Connectivity AMP Connectors A3BBH-4018M	Socket to Socket	Gold				15 µin	0.38 µm	Strain Relief	Unshielded	40	2	0.05 "	1.27 mm	IDC	0.1 in	2.54 mm	457.2 mm	1.5 ft	Multiple, Ribbon
TE Connectivity AMP Connectors A3BBH-6436G	Socket to Socket	Gold				15 µin	0.38 µm	Strain Relief	Unshielded	64	2	0.05 "	1.27 mm	IDC	0.1 in	2.54 mm	914.4 mm	3 ft
TE Connectivity AMP Connectors A3BBH-3036G	Socket to Socket	Gold				15 µin	0.38 µm	Strain Relief	Unshielded	30	2	0.05 "	1.27 mm	IDC	0.1 in	2.54 mm	914.4 mm	3 ft
TE Connectivity AMP Connectors A3BBH-5006M	Socket to Socket	Gold	152.4 mm	6 "	0.5 '	15 µin	0.38 µm	Strain Relief	Unshielded	50	2	0.05 "	1.27 mm	IDC	0.1 in	2.54 mm			Multiple, Ribbon
TE Connectivity AMP Connectors A3BBH-1618M	Socket to Socket	Gold				15 µin	0.38 µm	Strain Relief	Unshielded		2	0.05 "	1.27 mm	IDC	0.1 in	2.54 mm	457.2 mm	1.5 ft	Multiple, Ribbon	16

Description

General part information

A3BBH Series

40 Position Cable Assembly Rectangular Socket to Socket 1.50' (457.20mm)

Documents

Technical documentation and resources

Ribbon Cable Assembly Length Guide

Datasheet
