1201080009

Active

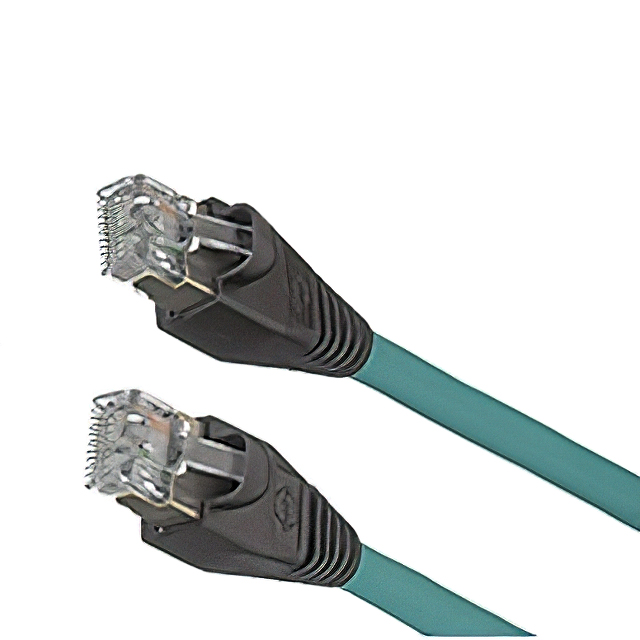

DOUBLE-ENDED RJ-45 CORDSET, 4 POLES, MALE (STRAIGHT) TO MALE (STRAIGHT), 24 AWG, TEAL UNSHIELDED PVC CABLE, 0.50M (1.64') LENGTH, 6.35MM (.250") DIAMETER

Find alt

Alpha

1201080009

Active

Molex

DOUBLE-ENDED RJ-45 CORDSET, 4 POLES, MALE (STRAIGHT) TO MALE (STRAIGHT), 24 AWG, TEAL UNSHIELDED PVC CABLE, 0.50M (1.64') LENGTH, 6.35MM (.250") DIAMETER

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

120108 Series

Micro-Change (M12) Double-Ended Cordset, 4 Poles, D-Coded, Male (90°) to Male (90°), 24 AWG, Teal TPE Cable, 27.0m (88.58') Length

Technical Specifications

Parameters and characteristics for this part

Specification	1201080009

Cable Type	Round Cable
Color	Teal
Connector Type	Plug to Plug, RJ45, Ethernet
Features	Molded Plugs
Length	1.64 ft
Mounting Type	Free Hanging (In-Line)
Number of Contacts	4
Number of Positions	8
Shielding	Unshielded
Style	Cat5e

120108 Series

Micro-Change (M12) Double-Ended Cordset, 4 Poles, D-Coded, Male (90°) to Male (90°), 24 AWG, Teal TPE Cable, 27.0m (88.58') Length

...

Part	Color	Shielding	Length	Connector Pin Count	Connector Type	Cable Type	2nd Connector Number of Positions	Ingress Protection Description	Ingress Protection IP Rating	2nd Connector Shell Size - Insert (Code)	1st Connector Mounting Type	Usage	Assembly Configuration	1st Connector Number of Positions Loaded	1st Connector Gender	1st Connector Type	1st Connector Number of Positions	1st Connector Shell Size - Insert	2nd Connector Mounting Type	Cable Material	2nd Connector Gender	2nd Connector Type	2nd Connector Number of Positions Loaded
Molex 1300480308	Teal	Unshielded	65.62 ft	4 pos	8p4c Circular Male to RJ45	Round
Molex 1201080093	Green	Shielded	32.8 ft			Round	4	Dust Tight Waterproof	IP67	M12	Free Hanging (In-Line)	Industrial Environments	Standard	All	Male Pins	Plug	4 positions	M12	Free Hanging (In-Line)	Polyurethane (PUR)	Male Pins	Plug	All
Molex 1201088058		Unshielded	6.56 ft	4 pos	8p4c Circular Male to RJ45	Round
Molex 1201088212
Molex 1201080486
Molex 1201080049	Teal	Shielded	1.97 ft			Round	4	Dust Tight Waterproof	IP67	M12	Free Hanging (In-Line)	Industrial Environments	Standard	All	Male Pins	Plug Right Angle	4 positions	M12	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	Male Pins	Plug	All
Molex 1201080522	Green	Shielded	6.56 ft	4 pos	8p4c Circular Male to RJ45	Round
Molex 1201088527	Teal	Shielded	295.28 ft	4 pos	8p8c Circular Male to RJ45	Round
Molex 1201085049	Green	Shielded	32.81 ft	8 pos	8p8c Circular Male to RJ45	Round
Molex 1201088151	Blue	Unshielded	13.12 ft	4 pos	8p4c Circular Male to RJ45	Round

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

No documents available
