Technical Specifications
Parameters and characteristics commom to parts in this series

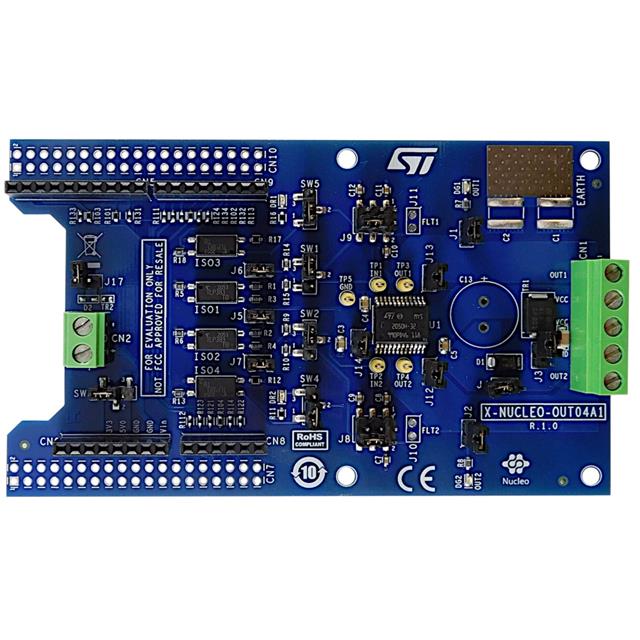

| Specification | X-NUCLEO-OUT04A1 | IPS2050 Series |
|---|---|---|
| - | - | |
| Contents | Board(s) | Board(s) |
| Function | Driver | Driver |
| Interconnect System | ST Morpho, Arduino R3 Shield | ST Morpho, Arduino R3 Shield |
| Platform | Nucleo | Nucleo |
| Suggested Programming Environment | STM32Cube | STM32Cube |
| Type | Power Management | Power Management |
| Utilized IC / Part | IPS2050H-32 | IPS2050H, IPS2050H-32 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 42.50 | |
IPS2050 Series
Industrial digital output expansion board based on IPS2050H in a QFN48L package
| Part | Function | Utilized IC / Part | Contents | Type | Interconnect System | Suggested Programming Environment | Platform |
|---|---|---|---|---|---|---|---|
STMicroelectronics X-NUCLEO-OUT03A1 | |||||||
STMicroelectronics X-NUCLEO-OUT03A1 | Driver | IPS2050H | Board(s) | Power Management | Arduino R3 Shield, ST Morpho | STM32Cube | Nucleo |
STMicroelectronics STEVAL-IFP043V1 | Driver | IPS2050H | Board(s) | Power Management | Arduino R3 Shield, ST Morpho | STM32Cube | Nucleo |
STMicroelectronics STEVAL-IFP044V1 | |||||||
STMicroelectronics X-NUCLEO-OUT03A1 | |||||||
STMicroelectronics STEVAL-IFP043V1 | |||||||
STMicroelectronics X-NUCLEO-OUT04A1 | Driver | IPS2050H-32 | Board(s) | Power Management | Arduino R3 Shield, ST Morpho | STM32Cube | Nucleo |
STMicroelectronics X-NUCLEO-OUT04A1 | |||||||
STMicroelectronics STEVAL-IFP044V1 | |||||||
STMicroelectronics X-NUCLEO-OUT04A1 | |||||||
STMicroelectronics STEVAL-IFP044V1 | Driver | IPS2050H-32 | Board(s) | Power Management | Arduino R3 Shield, ST Morpho | STM32Cube | Nucleo |
Description
General part information
IPS2050 Series
The STEVAL-IFP043V1 is an industrial digital output expansion board. It provides a powerful and flexible environment for the evaluation of the driving and diagnostic capabilities of the IPS2050H (dual high-side smart power solid state relay) in a digital output module connected to 2.5 A (max.) industrial loads.
The STEVAL-IFP043V1 can interface with the microcontroller on the STM32 Nucleo via 5 kV optocouplers driven by GPIO pins, Arduino UNO R3 (default configuration) and ST morpho (optional, not mounted) connectors.
The expansion board can be connected to either a NUCLEO-F401RE or NUCLEO-G431RB development board.
