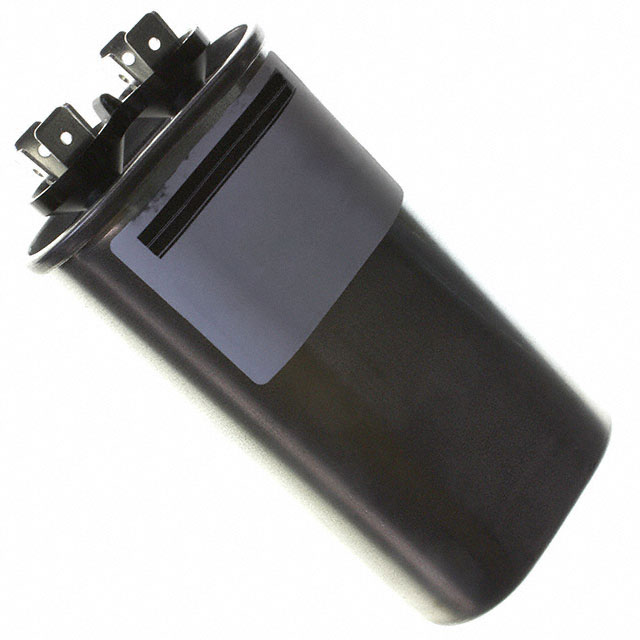

SFA37T20K375B-F
ActiveCornell Dubilier Knowles
CAP FILM 20UF 10% 370VAC RADIAL
SFA37T20K375B-F
ActiveCornell Dubilier Knowles
CAP FILM 20UF 10% 370VAC RADIAL
Description
General part information
SFA37T20K375B-F
20 µF Film Capacitor 370V Polypropylene (PP), Metallized Radial, Can
Technical Specifications
Parameters and characteristics for this part
| Specification | SFA37T20K375B-F |
|---|---|
| Applications | Motor Run |
| Capacitance | 20 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Mounting Type | Bracket, Chassis Mount, Requires Holder |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Size / Dimension Length | 2.16 in |
| Size / Dimension Width | 1.31 in |
| Termination | Disconnect, Quick Connect |
| Tolerance | 10 % |
| Voltage Rating - AC | 370 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
