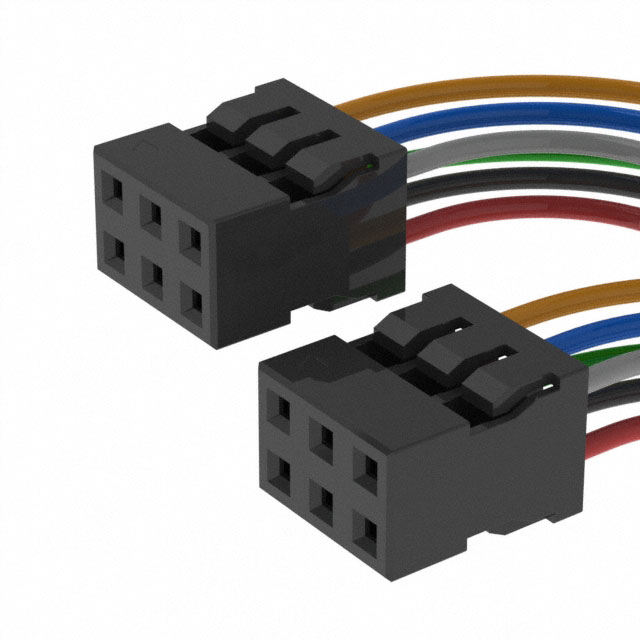

Specification	0511100650-20-A-6-Z

Cable Termination	Crimp
Color	Multiple, Individual
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	15 µin
Length	1.67 ft
Number of Positions	6
Number of Rows	2
Pitch - Connector	0.079 in
Shielding	Unshielded

051110 Series

Part	Row Spacing	Pitch	Connector Type	Fastening Type	Contact Type	Mounting Type	Color	Number of Positions	Contact Termination	Insulation Material	Operating Temperature (Min)	Operating Temperature (Max)	Number of Rows	Note	Features	Pitch - Connector	Cable Termination	Contact Finish Thickness	Length	Shielding	Contact Finish
Molex 0511101060	0.079 in	0.079 in	Receptacle	Locking Ramp	Female Socket	Free Hanging (In-Line)	Black	10	Crimp	Glass Filled Polyester	-40 °C	105 °C	2	Contacts Not Included
Molex 0511102252	0.079 in	0.079 in	Receptacle	Locking Ramp	Female Socket	Free Hanging (In-Line)	Black	22	Crimp	Glass Filled Polyester	-40 °C	105 °C	2	Contacts Not Included	Polarizing Key
Molex 0511101450	0.079 in	0.079 in	Receptacle		Female Socket	Free Hanging (In-Line)	Black	14	Crimp	Glass Filled Polyester	-40 °C	105 °C	2	Contacts Not Included
Molex 0511101652	0.079 in	0.079 in	Receptacle	Locking Ramp	Female Socket	Free Hanging (In-Line)	Black	16	Crimp	Glass Filled Polyester	-40 °C	105 °C	2	Contacts Not Included	Polarizing Key
Molex 0511100650-10-A-6-X			Socket to Cable				Individual Multiple	6					2			0.079 in	Crimp	15 µin	0.833 ft	Unshielded	Gold
Molex 0511100650-30-A-6-Y			Socket to Cable				Individual Multiple	6					2			0.079 in	Crimp	15 µin	2.5 ft	Unshielded	Gold
Molex 0511101251	0.079 in	0.079 in	Receptacle		Female Socket	Free Hanging (In-Line)	Black	12	Crimp	Glass Filled Polyester	-40 °C	105 °C	2	Contacts Not Included	Polarizing Key
Molex 0511100650	0.079 in	0.079 in	Receptacle		Female Socket	Free Hanging (In-Line)	Black	6	Crimp	Glass Filled Polyester	-40 °C	105 °C	2	Contacts Not Included
Molex 0511100656	0.079 in	0.079 in	Receptacle	Locking Ramp	Female Socket	Free Hanging (In-Line)	Black	6	Crimp	Glass Filled Polyester	-40 °C	105 °C	2	Contacts Not Included
Molex 0511100650-30-A-6-X			Socket to Cable				Individual Multiple	6					2			0.079 in	Crimp	15 µin	2.5 ft	Unshielded	Gold
