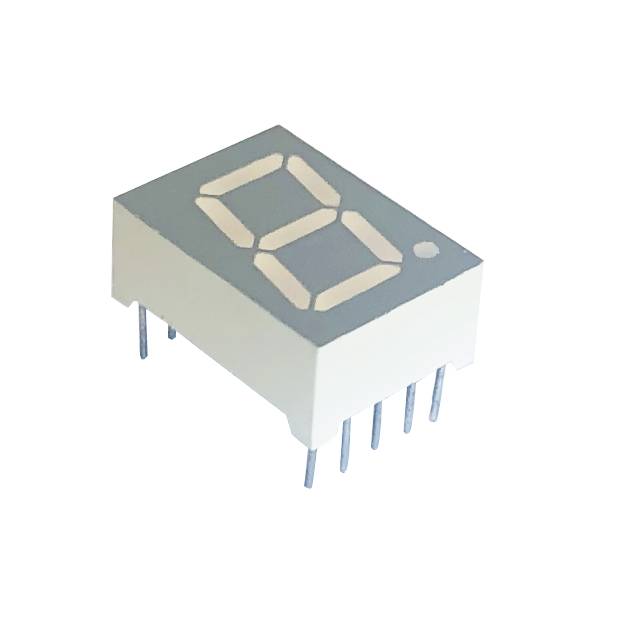

A561SR-5 G/W

Active

American Opto Plus LED

DISPLAY 7SEG 0.56" SGL RED 18DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A561SR-5 G/W

Color	Red
Common Pin	Common Anode
Current - Test	20 mA
Digit/Alpha Size	0.56 in
Digit/Alpha Size	14.22 mm
Display Type	7-Segment
Millicandela Rating	6 mcd
Number of Characters [custom]	1
Package / Case	0.6 in
Package / Case	15.24 mm
Package / Case	10-DIP
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	19 mm
Size / Dimension [x]	0.748 in
Size / Dimension [y]	12.6 mm
Size / Dimension [y]	0.496 in
Size / Dimension [z]	0.325 "
Size / Dimension [z]	8.25 mm
Voltage - Forward (Vf) (Typ)	1.8 V
Wavelength - Peak	655 nm

A561 Series

DISPLAY 7SEG 0.56" SGL RED 18DIP

Part	Common Pin	Current - Test	Digit/Alpha Size	Digit/Alpha Size	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Display Type	Color	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Power Dissipation (Max) [Max]	Package / Case	Package / Case	Package / Case	Number of Characters [custom]	Wavelength - Peak
American Opto Plus LED A561SR-5 G/W	Common Anode	20 mA	0.56 in	14.22 mm	19 mm	0.325 "	0.748 in	12.6 mm	8.25 mm	0.496 in	7-Segment	Red	1.8 V	6 mcd	75 mw	0.6 in	15.24 mm	10-DIP	1	655 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.15
		10	$ 0.92
		100	$ 0.58
		500	$ 0.46
		1000	$ 0.37

Description

General part information

A561 Series

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 1.8V 20mA 0.748" H x 0.496" W x 0.325" D (19.00mm x 12.60mm x 8.25mm) 10-DIP (0.600", 15.24mm)
