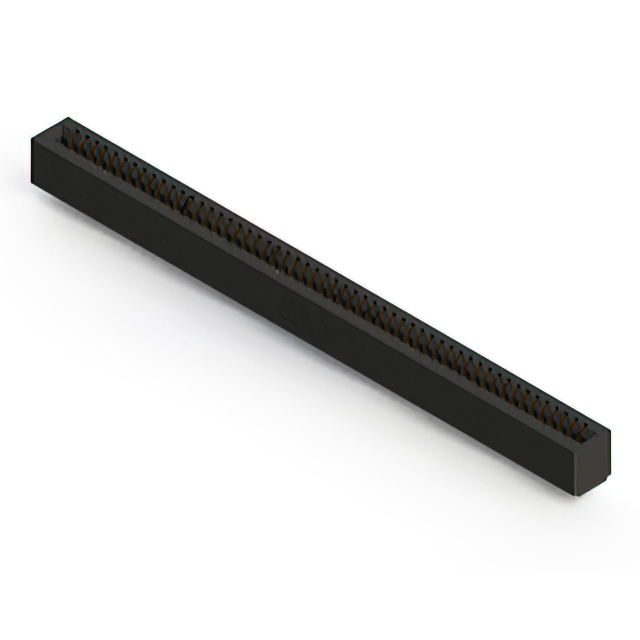

391-108-556-201
ActiveEDAC Inc.
CONN EDGE DUAL FML 108POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
391-108-556-201
ActiveEDAC Inc.
CONN EDGE DUAL FML 108POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 391-108-556-201 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Extender |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 108 |
| Number of Positions/Bay/Row [custom] | 54 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
391-108 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Number of Positions/Bay/Row [custom] | Number of Rows | Number of Positions | Termination | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Card Type | Mounting Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Material - Insulation | Color | Read Out | Pitch [x] | Pitch [x] | Contact Type | Termination Rows | Gender | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | -40 °C | 105 ░C | Copper Alloy | 54 | 2 | 108 | Solder | Gold | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Polyester Thermoplastic | Black | Dual | 2.54 mm | 0.1 in | Semi Bellows | 2 | Female | |
EDAC Inc. | -40 °C | 105 ░C | Copper Alloy | 54 | 2 | 108 | Solder | Gold | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Black | Dual | 2.54 mm | 0.1 in | Semi Bellows | 2 | Female | Card Extender | |||
EDAC Inc. | -40 °C | 105 ░C | Copper Alloy | 54 | 2 | 108 | Solder | Gold | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | Polyester Thermoplastic | Black | Dual | 2.54 mm | 0.1 in | Semi Bellows | 2 | Female | |
EDAC Inc. | -40 °C | 105 ░C | Copper Alloy | 54 | 2 | 108 | Solder | Gold | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | Polyester Thermoplastic | Black | Dual | 2.54 mm | 0.1 in | Semi Bellows | 2 | Female | Card Extender |
EDAC Inc. | -40 °C | 105 ░C | Copper Alloy | 54 | 2 | 108 | Solder Eyelet(s) | Gold | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | Polyester Thermoplastic | Black | Dual | 2.54 mm | 0.1 in | Semi Bellows | 2 | Female | Card Extender |
EDAC Inc. | -40 °C | 105 ░C | Copper Alloy | 54 | 2 | 108 | Solder | Gold | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | Polyester Thermoplastic | Black | Dual | 2.54 mm | 0.1 in | Semi Bellows | 2 | Female | Card Extender |
EDAC Inc. | -40 °C | 105 ░C | Copper Alloy | 54 | 2 | 108 | Solder | Gold | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Polyester Thermoplastic | Black | Dual | 2.54 mm | 0.1 in | Semi Bellows | 2 | Female | |
EDAC Inc. | -40 °C | 105 ░C | Copper Alloy | 54 | 2 | 108 | Solder | Gold | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | Polyester Thermoplastic | Black | Dual | 2.54 mm | 0.1 in | Semi Bellows | 2 | Female | |
EDAC Inc. | -40 °C | 105 ░C | Copper Alloy | 54 | 2 | 108 | Solder | Gold | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Black | Dual | 2.54 mm | 0.1 in | Semi Bellows | 2 | Female | Card Extender | |||
EDAC Inc. | -40 °C | 105 ░C | Copper Alloy | 54 | 2 | 108 | Solder | Gold | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Polyester Thermoplastic | Black | Dual | 2.54 mm | 0.1 in | Semi Bellows | 2 | Female | Card Extender |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
391-108 Series
108 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
