1375798-1

Active

TE Connectivity AMP Connectors

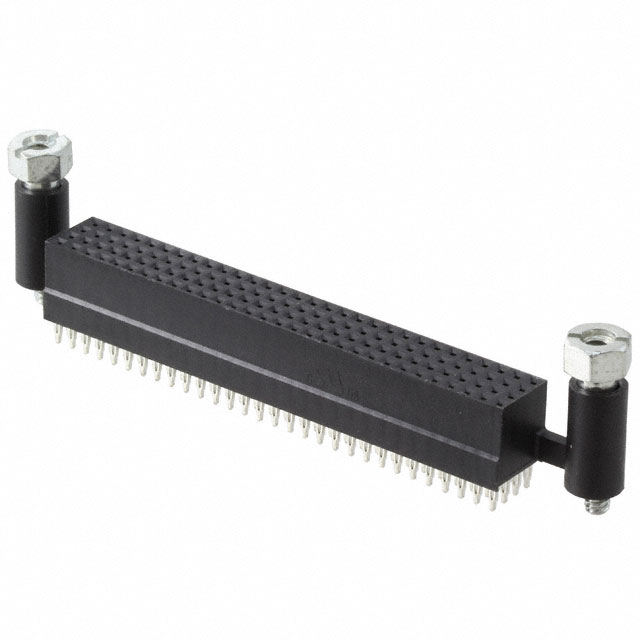

CONN NON-STKTHR PC/104+ 120P PCB

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN NON-STKTHR PC/104+ 120P PCB

Technical Specifications

Parameters and characteristics for this part

Specification	1375798-1

Color	Black
Connector Style	PC/104 Plus
Connector Type	Non-Stackthrough, Unkeyed (PC/104)
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Features	Screwlocks
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	120
Number of Positions Loaded	All
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Press-Fit

CONN NON-STKTHR PC/104+ 120P PCB

Part	Mounting Type	Pitch [x]	Pitch [x]	Color	Features	Connector Style	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Termination	Number of Positions Loaded	Number of Positions	Contact Finish
TE Connectivity AMP Connectors 1375798-1	Through Hole	0.079 in	2 mm	Black	Screwlocks	PC/104 Plus	105 ░C	-55 °C	Non-Stackthrough, Unkeyed (PC/104)	UL94 V-0	15 µin	0.38 µm	Press-Fit	All	120	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	105	$ 28.30

General part information

120 Connector Non-Stackthrough, Unkeyed (PC/104) Through Hole Black PC/104 Plus
