EJG.0B.305.CLL

Active

LEMO

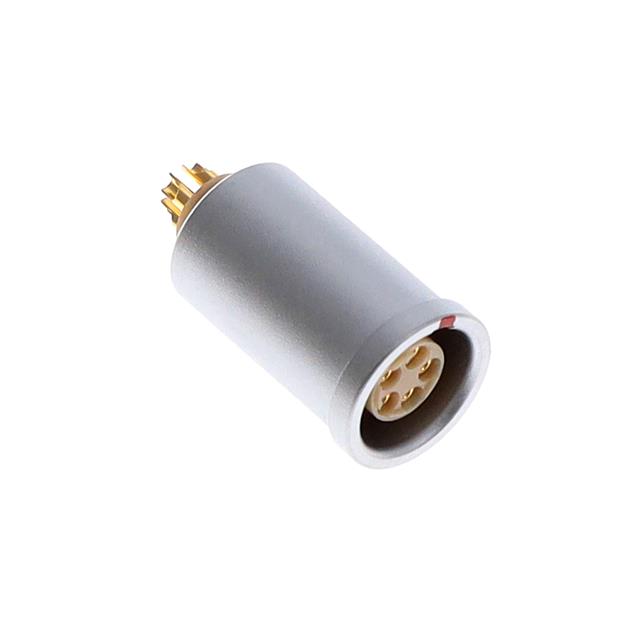

CONN RCPT FMALE 5P GOLD SLDR CUP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 5P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EJG.0B.305.CLL	EJG.0B Series

Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	6.5 A	6.5 - 10 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Press Fit	Press Fit
Number of Positions	-	2 - 4
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	305	302 - 305
Shielding	Shielded	Shielded
Termination	-	Crimp

CONN RCPT FMALE 4P GOLD SLDR CUP

Part	Shielding	Shell Finish	Contact Material	Material Flammability Rating	Fastening Type	Orientation	Color	Insert Material	Current Rating (Amps)	Shell Size - Insert	Connector Type	Ingress Protection	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Mounting Type	Shell Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Primary Material	Termination
LEMO EJG.0B.304.CLL	Shielded	Chrome	Bronze	UL94 V-0	Push-Pull	G	Silver	Polyetheretherketone (PEEK)	7 A	304	Receptacle, Female Sockets	IP50	4	-55 °C	250 °C	Gold	Press Fit	Brass	59 Áin	1.5 Ám	Metal
LEMO EJG.0B.302.CYM	Shielded	Chrome	Bronze	UL94 V-0	Push-Pull	G	Silver	Polyetheretherketone (PEEK)	10 A	302	Receptacle, Female Sockets	IP50	2	-55 °C	250 °C	Gold	Press Fit	Brass	59 Áin	1.5 Ám	Metal	Crimp
LEMO EJG.0B.304.CYM	Shielded	Chrome	Bronze	UL94 V-0	Push-Pull	G	Silver	Polyetheretherketone (PEEK)	7 A	304	Receptacle, Female Sockets	IP50	4	-55 °C	250 °C	Gold	Press Fit	Brass	59 Áin	1.5 Ám	Metal	Crimp
LEMO EJG.0B.305.CLL	Shielded	Chrome	Bronze	UL94 V-0	Push-Pull	G	Silver	Polyetheretherketone (PEEK)	6.5 A	305	Receptacle, Female Sockets	IP50		-55 °C	250 °C	Gold	Press Fit	Brass	59 Áin	1.5 Ám	Metal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Female Sockets Solder Cup
