TI180M484-DK

Unknown

Efinix, Inc.

TITANIUM TI180 M484 EVAL BRD

Search across all available documentation for this part.

Unknown

Efinix, Inc.

TITANIUM TI180 M484 EVAL BRD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TI180M484-DK	Ti180 Series

Contents	Power Supply, Cable(s), Accessories, Board(s)	Power Supply, Cable(s), Accessories, Board(s)
For Use With/Related Products	Ti180M484	Ti180M484
Interconnect System	FMC	FMC
Mounting Type	-	Surface Mount
Number of I/O	-	80
Number of Logic Elements/Cells	-	176256
Operating Temperature	-	85 - 100 °C
Operating Temperature	-	-40 - 0 C
Package / Case	-	484-LFBGA, 361-TFBGA
Platform	Titanium Ti180 M484 FPGA	Titanium Ti180 M484 FPGA
Suggested Programming Environment	Efinity	Efinity
Supplier Device Package	-	484-FBGA (18x18), 361-FBGA (13x13)
Total RAM Bits	-	13110000 Bits
Utilized IC / Part	Ti180M484	Ti180M484
Voltage - Supply	-	0.92 V
Voltage - Supply	-	0.98 V

FPGA TITAN 80GPIO 640DSP 484BGA

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Number of I/O	Total RAM Bits	Number of Logic Elements/Cells	Interconnect System	Utilized IC / Part	Suggested Programming Environment	Contents	For Use With/Related Products	Platform
Efinix, Inc. TI180J484I4	100 °C	-40 C	Surface Mount	484-FBGA (18x18)	0.92 V	0.98 V	484-LFBGA	80	13110000 Bits	176256
Efinix, Inc. TI180J361I3	100 °C	-40 C	Surface Mount	361-FBGA (13x13)	0.92 V	0.98 V	361-TFBGA	80	13110000 Bits	176256
Efinix, Inc. TI180J361C4	85 °C	0 °C	Surface Mount	361-FBGA (13x13)	0.92 V	0.98 V	361-TFBGA	80	13110000 Bits	176256
Efinix, Inc. TI180M484-DK											FMC	Ti180M484	Efinity	Accessories, Board(s), Cable(s), Power Supply	Ti180M484	Titanium Ti180 M484 FPGA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

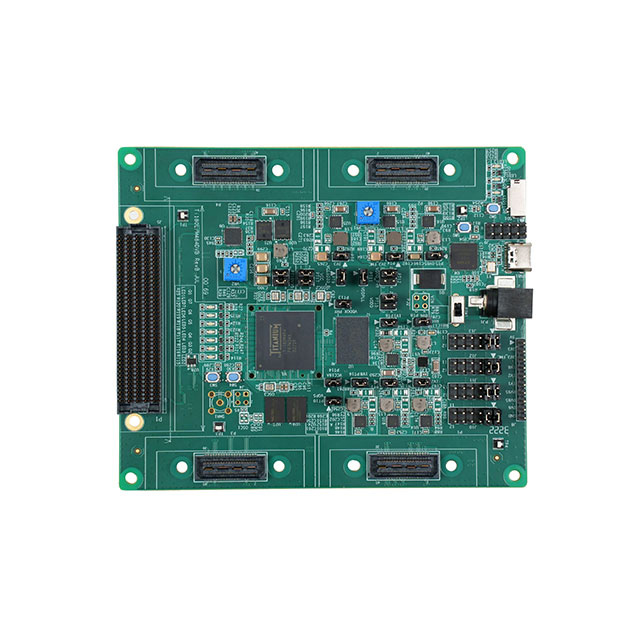

Titanium Ti180 M484 FPGA Ti180M484 Titanium™ FPGA Evaluation Board
