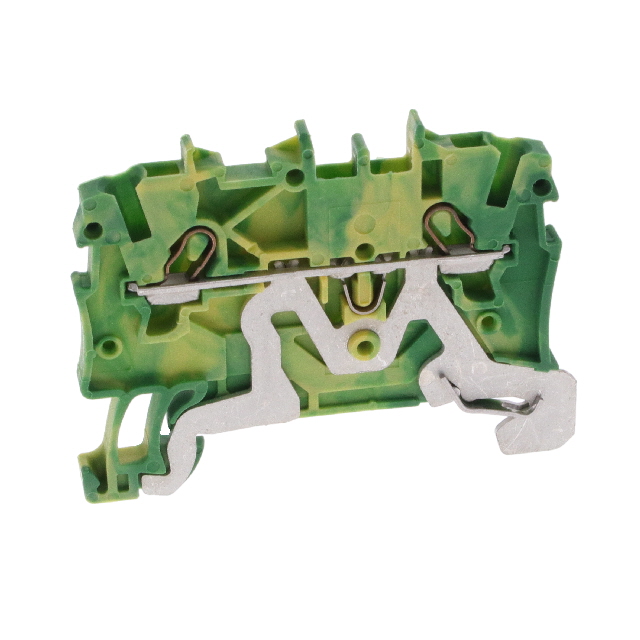

2000-1207

Active

WAGO Corporation

2-CONDUCTOR GROUND TERMINAL BLOC

Search across all available documentation for this part.

Active

WAGO Corporation

2-CONDUCTOR GROUND TERMINAL BLOC

Technical Specifications

Parameters and characteristics commom to parts in this series

2-CONDUCTOR GROUND TERMINAL BLOC

Part	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Material - Insulation	Stripping Length [Min]	Stripping Length [Max]	Number of Levels	Termination Style	Color	Number of Positions	Type	Terminal - Width [y]	Current - IEC	Voltage - UL	Voltage - IEC
WAGO Corporation 2000-1207	16 AWG	20 AWG	0.5 mm²	1.5 mm²	Polyamide (PA66), Nylon 6/6	9 mm	11 mm	1	Push In, Spring	Green, Yellow	2	Ground, Earth	3.5 mm
WAGO Corporation 2000-1201	16 AWG	20 AWG	0.5 mm²	1.5 mm²	Polyamide (PA66), Nylon 6/6	9 mm	11 mm	1	Push In, Spring	Gray	2	Feed Through	3.5 mm	17.5 A	600 V	800 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Block Connector 2 Position Ground, Earth Green, Yellow 16-20 AWG
