DC0022/03-TG-A373F-0.25-2A
Activet-Global Technology

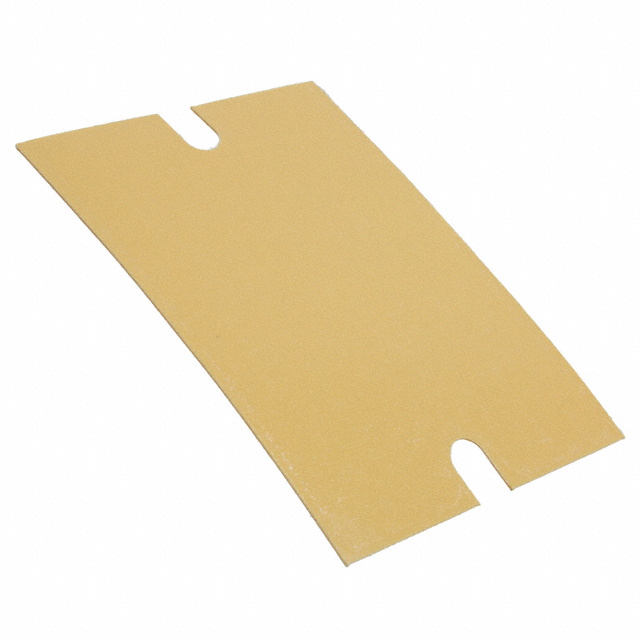

THERM PAD 63.5X50.8MM W/ADH YLW
Deep-Dive with AI
Search across all available documentation for this part.
DC0022/03-TG-A373F-0.25-2A
Activet-Global Technology
THERM PAD 63.5X50.8MM W/ADH YLW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DC0022/03-TG-A373F-0.25-2A | DC0022/03 Series |
|---|---|---|
| Adhesive | Adhesive - Both Sides | Adhesive - Both Sides |
| Backing, Carrier | - | Viscose |
| Color | Yellow | Red, White, Gray, Yellow |
| Material | - | Silicone |
| Outline [x] | 63.5 mm | 63.5 mm |
| Outline [y] | 50.8 mm | 50.8 mm |
| Shape | Rectangular | Rectangular |
| Shelf Life | 12 Months | 12 - 24 Months |
| Shelf Life Start | - | Date of Purchase |
| Thermal Conductivity | 1.4 W/m-K | 1.4 - 6 W/m-K |
| Thickness | - | 0.1 mm |
| Thickness | - | 0.0039 in |
| Thickness | - | 0.005 in |
| Thickness | - | 0.127 mm |
| Thickness [custom] | 0.254 mm | 0.254 - 0.305 mm |
| Thickness [custom] | 0.01 in | 0.01 - 0.012 " |
| Type | Die-Cut Pad, Sheet | Die-Cut Pad, Sheet |
| Usage | Power Module | Power Module |
DC0022/03 Series
THERM PAD 63.5X50.8MM RED
| Part | Usage | Thickness | Thickness | Color | Thermal Conductivity | Shelf Life | Shape | Material | Shelf Life Start | Outline [y] | Outline [x] | Type | Adhesive | Thickness [x] | Thickness [x] | Backing, Carrier | Thickness [custom] | Thickness [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
t-Global Technology DC0022/03-TG-A482K-0.1-0 | Power Module | 0.1 mm | 0.0039 in | Red | 2.3 W/m-K | 24 Months | Rectangular | Silicone | Date of Purchase | 50.8 mm | 63.5 mm | Die-Cut Pad, Sheet | ||||||
t-Global Technology DC0022/03-TI900-0.12-2A | Power Module | White | 1.8 W/m-K | 24 Months | Rectangular | Silicone | 50.8 mm | 63.5 mm | Die-Cut Pad, Sheet | Adhesive - Both Sides | 0.005 in | 0.127 mm | Viscose | |||||
t-Global Technology DC0022/03-TG-A486G-0.3-2A | Power Module | Gray | 6 W/m-K | 12 Months | Rectangular | Date of Purchase | 50.8 mm | 63.5 mm | Die-Cut Pad, Sheet | Adhesive - Both Sides | 0.305 mm | 0.012 " | ||||||
t-Global Technology DC0022/03-TG-A373F-0.25-2A | Power Module | Yellow | 1.4 W/m-K | 12 Months | Rectangular | 50.8 mm | 63.5 mm | Die-Cut Pad, Sheet | Adhesive - Both Sides | 0.254 mm | 0.01 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.08 | |
| 10 | $ 2.74 | |||
| 25 | $ 2.61 | |||
| 50 | $ 2.52 | |||
| 100 | $ 2.43 | |||
| 250 | $ 2.32 | |||
| 500 | $ 2.23 | |||
| 1000 | $ 2.15 | |||
| 5000 | $ 1.98 | |||
Description
General part information
DC0022/03 Series
Thermal Pad Yellow 63.50mm x 50.80mm Rectangular Adhesive - Both Sides
