AD595CD
ActiveAnalog Devices Inc

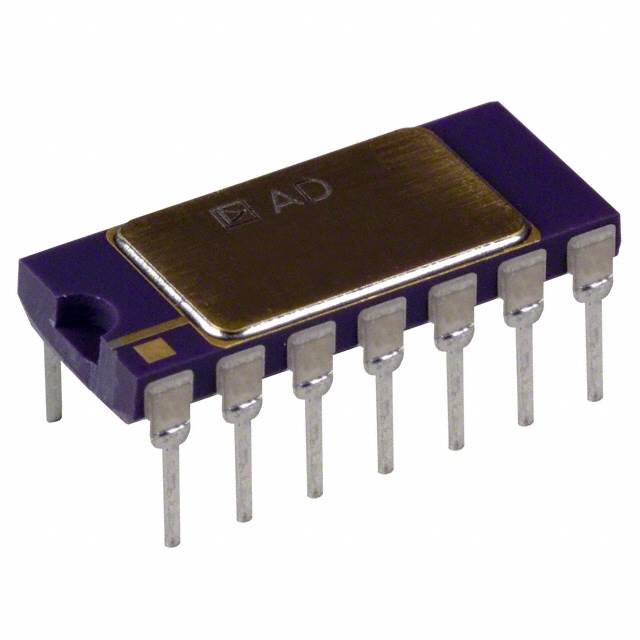

IC THERMOCOUPLE INSTR AMP 14CDIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AD595CD
ActiveAnalog Devices Inc
IC THERMOCOUPLE INSTR AMP 14CDIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | AD595CD | AD595 Series |
|---|---|---|
| Accuracy [Max] | 1 °C | 1 - 3 °C |
| Accuracy [Min] | -1 °C | -3 - -1 °C |
| Function | Thermocouple Amplifier | Thermocouple Amplifier |
| Mounting Type | Through Hole | Through Hole |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Output Alarm | True | True |
| Output Fan | False | False |
| Output Type | Voltage | Voltage |
| Package / Case | 0.3 in, 7.62 mm | 0.3 - 7.62 in |
| Package / Case | 14-CDIP | 14-CDIP |
| Sensor Type | External | External |
| Supplier Device Package | 14-CDIP | 14-CerDIP, 14-CDIP |
| Topology | Overload Detection, Ice Point Compensation | Overload Detection, Ice Point Compensation |
| Voltage - Supply | 5 V | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
AD595 Series
TYPE K THERMOCOUPLE AMPLIFIER WITH COLD JUNCTION COMPENSATION
| Part | Sensor Type | Voltage - Supply | Function | Output Alarm | Output Type | Accuracy [Max] | Accuracy [Min] | Output Fan | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Package / Case | Topology | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc AD595CQ | External | 5 V | Thermocouple Amplifier | Voltage | 1 °C | -1 °C | -55 °C | 125 °C | 0.3 in, 7.62 mm | 14-CDIP | Ice Point Compensation, Overload Detection | Through Hole | 14-CerDIP | ||
Analog Devices Inc AD595AD | External | 5 V | Thermocouple Amplifier | Voltage | 3 °C | -3 °C | -55 °C | 125 °C | 0.3 in, 7.62 mm | 14-CDIP | Ice Point Compensation, Overload Detection | Through Hole | 14-CDIP | ||
Analog Devices Inc AD595AQ | External | 5 V | Thermocouple Amplifier | Voltage | 3 °C | -3 °C | -55 °C | 125 °C | 0.3 in, 7.62 mm | 14-CDIP | Ice Point Compensation, Overload Detection | Through Hole | 14-CerDIP | ||
Analog Devices Inc AD595ADZ | External | 5 V | Thermocouple Amplifier | Voltage | 3 °C | -3 °C | -55 °C | 125 °C | 0.3 in, 7.62 mm | 14-CDIP | Ice Point Compensation, Overload Detection | Through Hole | 14-CDIP | ||
Analog Devices Inc AD595CD | External | 5 V | Thermocouple Amplifier | Voltage | 1 °C | -1 °C | -55 °C | 125 °C | 0.3 in, 7.62 mm | 14-CDIP | Ice Point Compensation, Overload Detection | Through Hole | 14-CDIP |
Description
General part information
AD595 Series
Thermocouple Amplifier External Sensor Voltage Output 14-CDIP
