14-235.025K

Active

EAO

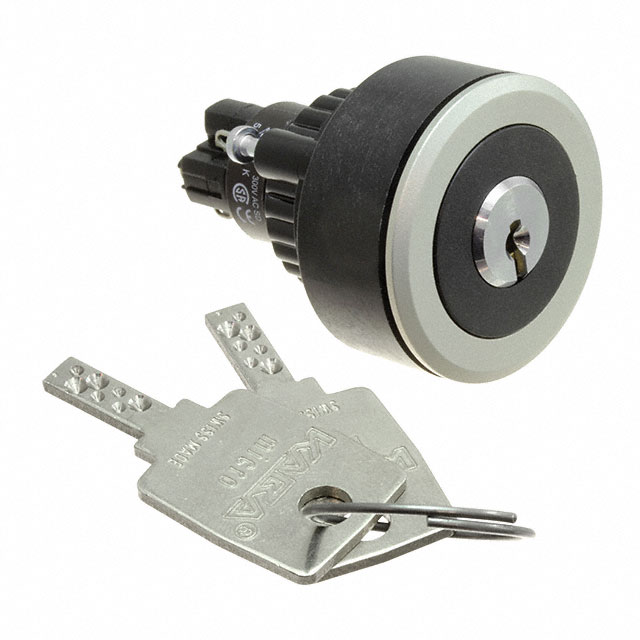

SWITCH KEYLOCK 2POS DPST 5A 250V

Search across all available documentation for this part.

Active

EAO

SWITCH KEYLOCK 2POS DPST 5A 250V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	14-235.025K	14-235 Series

	-	-
Actuator Type	Flat Key	Flat Key
Angle of Throw	90 °	90 °
Circuit	DPST-NO/NC	DPST-NO/NC
Contact Timing	Not Specified	Not Specified
Current Rating (Amps)	5 A	5 A
Depth Behind Flange	35.5 mm	35.5 mm
Depth Behind Flange	-	45.5 mm
Features	IP65	IP65
Key Removable Positions	1 only	1 only
Mechanical Life	1000000 Cycles	1000000 Cycles
Number of Positions	2	2
Operating Temperature [Max]	55 °C	55 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm	22.3 mm
Switch Function	On-Off, Off-On	On-Off, Off-On
Termination Style	Solder Lug	Solder Lug, Quick Connect, Solder
Termination Style	-	0.11 in
Termination Style	-	2.8 mm
Voltage Rating - AC	250 V	250 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

SWITCH KEYLOCK 2POS DPST 5A 250V

Part	Contact Timing	Panel Cutout Dimensions [diameter]	Features	Circuit	Depth Behind Flange	Actuator Type	Angle of Throw	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Termination Style	Key Removable Positions	Voltage Rating - AC	Current Rating (Amps)	Number of Positions	Mechanical Life	Depth Behind Flange [z]	Termination Style	Termination Style
EAO 14-235.025K	Not Specified	22.3 mm	IP65	DPST-NO/NC	35.5 mm	Flat Key	90 °	55 °C	-25 °C	Off-On, On-Off	Solder Lug	1 only	250 V	5 A	2	1000000 Cycles
EAO 14-235.022K	Not Specified	22.3 mm	IP65	DPST-NO/NC		Flat Key	90 °	55 °C	-25 °C	Off-On, On-Off	Quick Connect, Solder	1 only	250 V	5 A	2	1000000 Cycles	45.5 mm	0.11 in	2.8 mm
EAO 14-235.022K

General part information

Keylock Switch 2 Position DPST-NO/NC 5A (AC) 250 VAC DC Panel Mount
