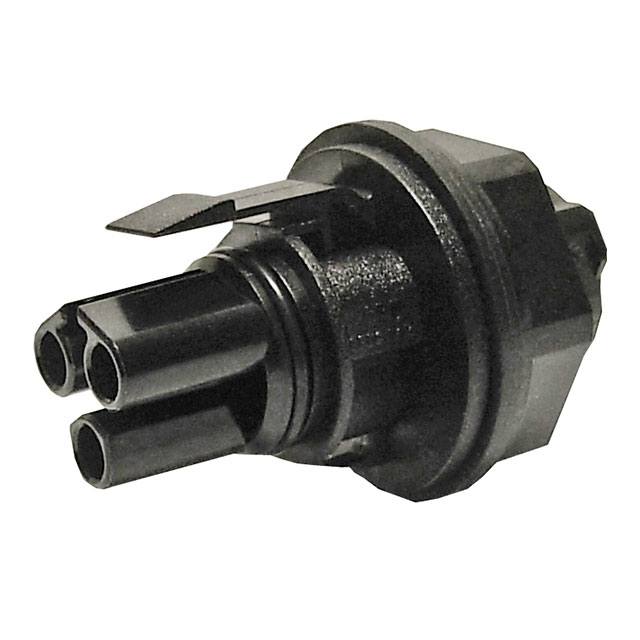

SK7-019M03

Active

Anderson Power Products, Inc.

CONN PLG HSG FMALE 3POS PNL MT

Search across all available documentation for this part.

Active

Anderson Power Products, Inc.

CONN PLG HSG FMALE 3POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	SK7-019M03

Connector Type	Plug Housing
Contact Shape	Circular
Contact Type	Crimp
Fastening Type	Latch Lock
Housing Color	Black
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Note	Contacts Not Included
Number of Positions	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Material	Polycarbonate (PC)
Shell Size - Insert	19-3
Shielding	Unshielded
Type	For Female Sockets

CONN PLG HSG FMALE 3POS PNL MT

Part	Fastening Type	Ingress Protection	Type	Mounting Feature	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Material Flammability Rating	Shell Size - Insert	Shielding	Housing Color	Note	Contact Shape	Shell Material	Contact Type	Number of Positions	Insert Material
Anderson Power Products, Inc. SK7-019M03	Latch Lock	IP68 - Dust Tight, Waterproof	For Female Sockets	Bulkhead - Rear Side Nut	Plug Housing	-20 C	105 ░C	Keyed	UL94 V-0	19-3	Unshielded	Black	Contacts Not Included	Circular	Polycarbonate (PC)	Crimp	3	Polycarbonate (PC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 (Power) Position Circular Connector Plug Housing Panel Mount
