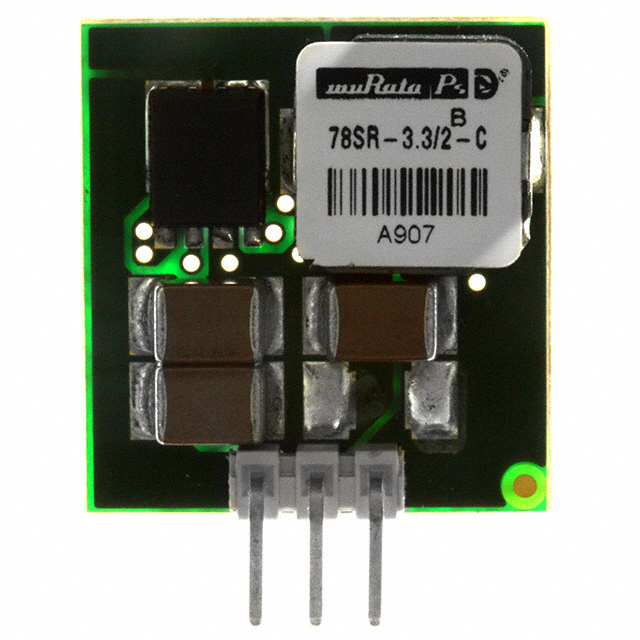

78SR-3.3/2-C
ActiveMurata Power Solutions Inc.
DC/DC CONVERTER, STEP DOWN, ITE, 1 OUTPUT, 6.6 W, 3.3 V, 2 A, 78SR SERIES
Deep-Dive with AI
Search across all available documentation for this part.
78SR-3.3/2-C
ActiveMurata Power Solutions Inc.
DC/DC CONVERTER, STEP DOWN, ITE, 1 OUTPUT, 6.6 W, 3.3 V, 2 A, 78SR SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 78SR-3.3/2-C | 78SR Series |
|---|---|---|
| Applications | - | ITE (Commercial) |
| Current - Output (Max) | - | 2 A |
| Features | - | OTP, SCP |
| Mounting Type | - | Through Hole |
| null | - | |
| Number of Outputs | - | 1 |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 70 °C |
| Package / Case | - | 3-SIP Module |
| Power (Watts) | - | 6 - 10 W |
| Size / Dimension | - | 20.3 mm |
| Size / Dimension | - | 0.33 in |
| Size / Dimension | - | 21.6 mm |
| Size / Dimension | - | 0.8 " |
| Size / Dimension | - | 0.85 " |
| Size / Dimension | - | 8.4 mm |
| Type | - | Linear Regulator Replacement |
| Voltage - Input (Max) | - | 32 V |
| Voltage - Input (Min) | - | 8 V |
| Voltage - Output 1 | - | 3.3 - 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
78SR Series
DC/DC CONVERTER, STEP DOWN, ITE, 1 OUTPUT, 10 W, 5 V, 2 A
| Part | Package / Case | Features | Power (Watts) | Current - Output (Max) [Max] | Applications | Number of Outputs | Voltage - Input (Min) [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Max) [Max] | Voltage - Output 1 | Type | Mounting Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. 78SR-5/2-C | 3-SIP Module | OTP, SCP | 10 W | 2 A | ITE (Commercial) | 1 | 8 V | -40 °C | 70 °C | 32 V | 5 V | Linear Regulator Replacement | Through Hole | 20.3 mm | 0.33 in | 21.6 mm | 0.8 " | 0.85 " | 8.4 mm |
Murata Power Solutions Inc. 78SR-5/2-C | |||||||||||||||||||
Murata Power Solutions Inc. 78SR-3.3/2-C | 3-SIP Module | OTP, SCP | 6 W | 2 A | ITE (Commercial) | 1 | 8 V | -40 °C | 70 °C | 32 V | 3.3 V | Linear Regulator Replacement | Through Hole | 20.3 mm | 0.33 in | 21.6 mm | 0.8 " | 0.85 " | 8.4 mm |
Murata Power Solutions Inc. 78SR-3.3/2-C |
Description
General part information
78SR Series
Linear Regulator Replacement DC DC Converter 1 Output 3.3V 2A 8V - 32V Input
