A1BXB-1036G
ActiveTE Connectivity AMP Connectors
IDC CABLE- ASR10B/AE10G/X
Deep-Dive with AI
Search across all available documentation for this part.
A1BXB-1036G
ActiveTE Connectivity AMP Connectors
IDC CABLE- ASR10B/AE10G/X
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A1BXB-1036G | A1BXB Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | - | Ribbon, Multiple |
| Connector Type | Socket to Cable | Socket to Cable |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Features | Strain Relief | Strain Relief |
| Length [x] | 3 ft | 3 ft |
| Length [x] | 914.4 mm | 914.4 mm |
| Number of Positions | 10 | 10 - 50 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.82 | |
| 10 | $ 4.82 | |||
| 25 | $ 4.47 | |||
| 50 | $ 4.23 | |||
| 100 | $ 4.00 | |||
| 250 | $ 3.71 | |||
| 500 | $ 3.51 | |||
| 1000 | $ 3.32 | |||
| 2500 | $ 3.08 | |||
A1BXB Series
IDC CABLE- ASR50B/AE50G/X
| Part | Pitch - Connector | Pitch - Connector | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Number of Positions | Length [x] | Length [x] | Number of Rows | Features | Shielding | Cable Termination | Pitch - Cable | Pitch - Cable | Number of Positions | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A1BXB-5036G | 0.1 in | 2.54 mm | Socket to Cable | 0.76 Ám | 30 Áin | Gold | 50 | 3 ft | 914.4 mm | 2 | Strain Relief | Unshielded | IDC | 0.05 " | 1.27 mm | ||
TE Connectivity AMP Connectors A1BXB-1636M | 0.1 in | 2.54 mm | Socket to Cable | 0.76 Ám | 30 Áin | Gold | 3 ft | 914.4 mm | 2 | Strain Relief | Unshielded | IDC | 0.05 " | 1.27 mm | 16 | Multiple, Ribbon | |
TE Connectivity AMP Connectors A1BXB-2436G | 0.1 in | 2.54 mm | Socket to Cable | 0.76 Ám | 30 Áin | Gold | 24 | 3 ft | 914.4 mm | 2 | Strain Relief | Unshielded | IDC | 0.05 " | 1.27 mm | ||
TE Connectivity AMP Connectors A1BXB-2036M | 0.1 in | 2.54 mm | Socket to Cable | 0.76 Ám | 30 Áin | Gold | 20 | 3 ft | 914.4 mm | 2 | Strain Relief | Unshielded | IDC | 0.05 " | 1.27 mm | Multiple, Ribbon | |
TE Connectivity AMP Connectors A1BXB-2636M | 0.1 in | 2.54 mm | Socket to Cable | 0.76 Ám | 30 Áin | Gold | 26 | 3 ft | 914.4 mm | 2 | Strain Relief | Unshielded | IDC | 0.05 " | 1.27 mm | Multiple, Ribbon | |
TE Connectivity AMP Connectors A1BXB-1436G | 0.1 in | 2.54 mm | Socket to Cable | 0.76 Ám | 30 Áin | Gold | 14 | 3 ft | 914.4 mm | 2 | Strain Relief | Unshielded | IDC | 0.05 " | 1.27 mm | ||
TE Connectivity AMP Connectors A1BXB-3036G | 0.1 in | 2.54 mm | Socket to Cable | 0.76 Ám | 30 Áin | Gold | 30 | 3 ft | 914.4 mm | 2 | Strain Relief | Unshielded | IDC | 0.05 " | 1.27 mm | ||
TE Connectivity AMP Connectors A1BXB-1036G | 0.1 in | 2.54 mm | Socket to Cable | 0.76 Ám | 30 Áin | Gold | 10 | 3 ft | 914.4 mm | 2 | Strain Relief | Unshielded | IDC | 0.05 " | 1.27 mm | ||
TE Connectivity AMP Connectors A1BXB-2636G | 0.1 in | 2.54 mm | Socket to Cable | 0.76 Ám | 30 Áin | Gold | 26 | 3 ft | 914.4 mm | 2 | Strain Relief | Unshielded | IDC | 0.05 " | 1.27 mm | ||
TE Connectivity AMP Connectors A1BXB-4036G | 0.1 in | 2.54 mm | Socket to Cable | 0.76 Ám | 30 Áin | Gold | 40 | 3 ft | 914.4 mm | 2 | Strain Relief | Unshielded | IDC | 0.05 " | 1.27 mm |
Description
General part information
A1BXB Series

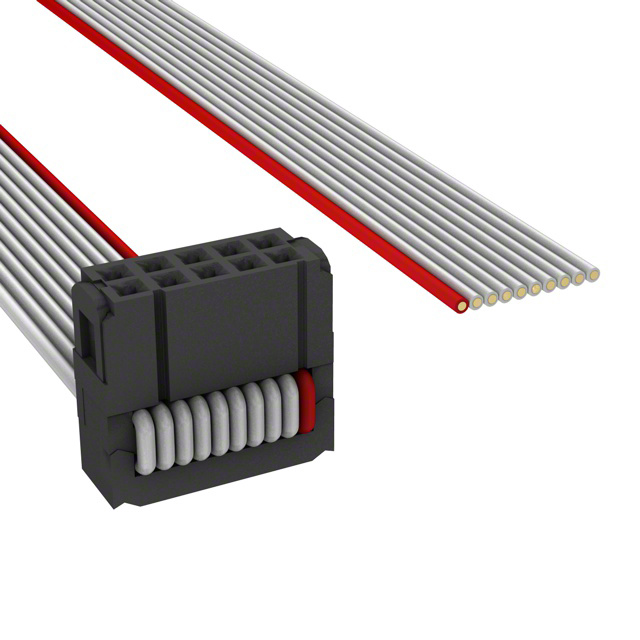

10 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)
