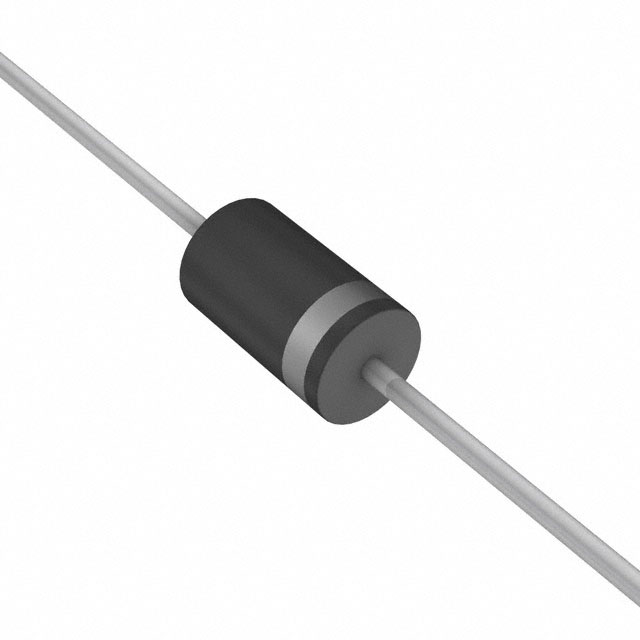

1.5KE10AH

Active

Taiwan Semiconductor Corporation

TVS DIODE 8.55VWM 14.5VC DO201

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

TVS DIODE 8.55VWM 14.5VC DO201

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14.5V Clamp 108A Ipp Tvs Diode Through Hole DO-201

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	1.5KE10AH	1.5KE10 Series

Applications	-	General Purpose
Bidirectional Channels	-	1
Current - Peak Pulse (10/1000µs)	108 A	105 - 108 A
Grade	Automotive	Automotive
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	175 ░C	175 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Axial, DO-27, DO-201AA	Axial, DO-27, DO-201AA
Power - Peak Pulse	1.5 kW	1.5 kW
Power - Peak Pulse	1500 W	1500 W
Power Line Protection	False	False
Qualification	AEC-Q101	AEC-Q101
Supplier Device Package	DO-201	DO-201
Type	Zener	Zener
Unidirectional Channels [custom]	1	1
Voltage - Breakdown (Min) [Min]	9.5 V	9 - 9.5 V
Voltage - Clamping (Max) @ Ipp [Max]	14.5 V	14.5 - 15 V
Voltage - Reverse Standoff (Typ)	8.55 V	8.1 - 8.55 V

TVS DIODE 8.55VWM 14.5VC DO201

Part	Power - Peak Pulse	Power - Peak Pulse	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Breakdown (Min) [Min]	Type	Operating Temperature [Min]	Operating Temperature [Max]	Unidirectional Channels [custom]	Voltage - Reverse Standoff (Typ)	Grade	Current - Peak Pulse (10/1000µs)	Mounting Type	Qualification	Supplier Device Package	Package / Case	Applications	Bidirectional Channels [custom]
Taiwan Semiconductor Corporation 1.5KE10AHA0G	1.5 kW	1500 W	14.5 V	9.5 V	Zener	-55 °C	175 ░C	1	8.55 V	Automotive	108 A	Through Hole	AEC-Q101	DO-201	Axial, DO-201AA, DO-27
Taiwan Semiconductor Corporation 1.5KE10A R0G	1.5 kW	1500 W	14.5 V	9.5 V	Zener	-55 °C	175 ░C	1	8.55 V		108 A	Through Hole		DO-201	Axial, DO-201AA, DO-27	General Purpose
Taiwan Semiconductor Corporation 1.5KE10CA	1.5 kW	1500 W	14.5 V	9.5 V	Zener	-55 °C	175 ░C		8.55 V		108 A	Through Hole		DO-201	Axial, DO-201AA, DO-27	General Purpose	1
Taiwan Semiconductor Corporation 1.5KE10	1.5 kW	1500 W	15 V	9 V	Zener	-55 °C	175 ░C	1	8.1 V	Automotive	105 A	Through Hole	AEC-Q101	DO-201	Axial, DO-201AA, DO-27	General Purpose
Taiwan Semiconductor Corporation 1.5KE10A	1.5 kW	1500 W	14.5 V	9.5 V	Zener	-55 °C	175 ░C	1	8.55 V		108 A	Through Hole		DO-201	Axial, DO-201AA, DO-27	General Purpose
Taiwan Semiconductor Corporation 1.5KE10CA R0G	1.5 kW	1500 W	14.5 V	9.5 V	Zener	-55 °C	175 ░C		8.55 V		108 A	Through Hole		DO-201	Axial, DO-201AA, DO-27	General Purpose	1
Taiwan Semiconductor Corporation 1.5KE10AH	1.5 kW	1500 W	14.5 V	9.5 V	Zener	-55 °C	175 ░C	1	8.55 V	Automotive	108 A	Through Hole	AEC-Q101	DO-201	Axial, DO-201AA, DO-27
