1732111
ObsoletePhoenix Contact
TERM BLOCK 1POS 45DEG PCB
1732111
ObsoletePhoenix Contact
TERM BLOCK 1POS 45DEG PCB
Description
General part information
1732111

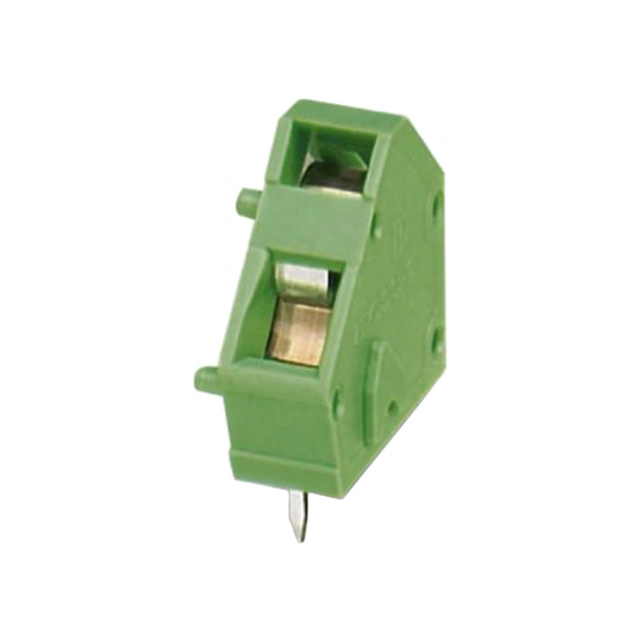

1 Position Wire to Board Terminal Block 45° (135°) Angle with Board Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1732111 |
|---|---|
| Color | Green |
| Features | Interlocking (Side) |
| Housing Material | Nylon, Polyamide, PA |
| Mating Orientation (Angle) | 45 ° |
| Mating Orientation (Angle) (Alternate) | 135 ° |
| Mating Orientation (Description) | Angle with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Positions Per Level | 1 |
| Wire Termination | Spring Cage, Screwless, Tension Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
