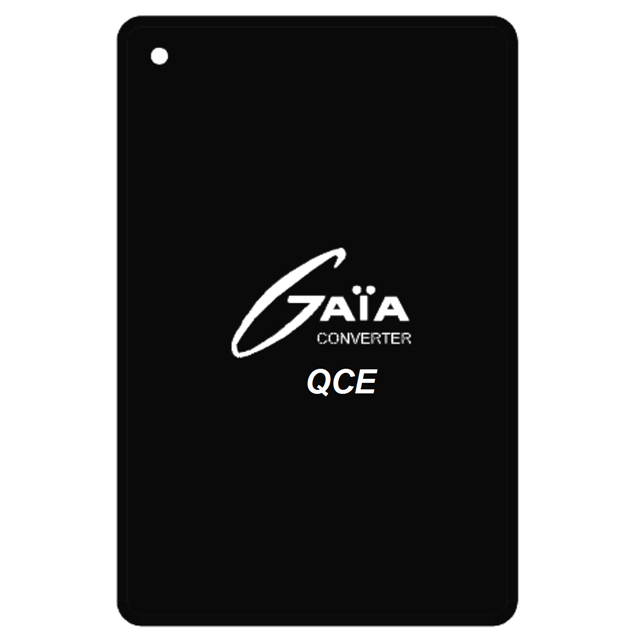

MGDBK35QE

Active

Gaia Converter

DC DC CONVERTER

Search across all available documentation for this part.

Active

Gaia Converter

DC DC CONVERTER

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER

Part	Power (Watts)	Features	Number of Outputs	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Voltage - Input (Min) [Min]	Voltage - Isolation	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Mounting Type	Voltage - Output 1	Voltage - Output 2	Efficiency	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]
Gaia Converter MGDBK35QE	35 W	Remote On/Off	2	140 V	-40 °C	203 °F	ITE (Commercial)	36 V	1.5 kV	1.45 A	1.45 A	Through Hole	12 V	-12 V	85 %	Isolated Module	73.3 mm	48.26 mm	48.3 mm	12.8 mm	0.49 in	2.88 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3	$ 134.82

General part information

Isolated Module DC DC Converter 2 Output 12V -12V 1.45A, 1.45A 36V - 140V Input
