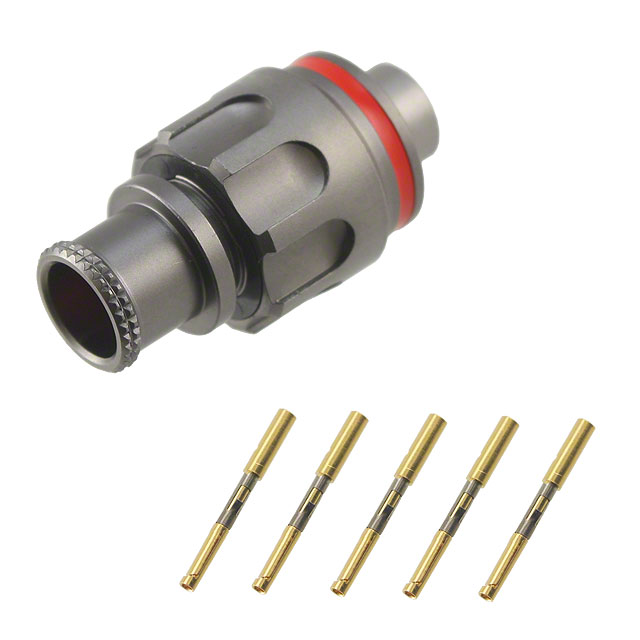

FGS.0M.305.XLMT

Active

LEMO

CONN PLUG FMALE 5POS GOLD CRIMP

Search across all available documentation for this part.

Active

LEMO

CONN PLUG FMALE 5POS GOLD CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FGS.0M.305.XLMT	FGS.0M Series

Applications	Military, Aerospace, Automotive, Aviation	Military, Aerospace, Automotive, Aviation
Cable Opening [diameter]	8 mm	8 mm
Cable Opening [diameter]	0.315 in	0.315 in
Color	Gray	Gray
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	6.5 A	6.5 - 8 A
Features	Coupling Nut	Coupling Nut
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	S	S
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Aluminum Alloy	Aluminum Alloy
Shell Size - Insert	305	303 - 305
Shielding	Shielded	Shielded
Termination	Crimp	Crimp

CONN PLUG FMALE 3POS GOLD CRIMP

Part	Shell Size - Insert	Current Rating (Amps)	Color	Shell Finish	Contact Material	Contact Finish - Mating	Mounting Type	Cable Opening [diameter]	Cable Opening [diameter]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Connector Type	Shielding	Insert Material	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Features	Primary Material	Orientation	Shell Material	Ingress Protection
LEMO FGS.0M.303.XLMT	303	8 A	Gray	Nickel	Bronze	Gold	Free Hanging (In-Line)	8 mm	0.315 in	59 Áin	1.5 Ám	Aerospace, Automotive, Aviation, Military	Female Sockets, Plug	Shielded	Polyetheretherketone (PEEK)	Crimp	-55 °C	200 °C	Coupling Nut	Metal	S	Aluminum Alloy	IP68 - Dust Tight, Waterproof
LEMO FGS.0M.305.XLMT	305	6.5 A	Gray	Nickel	Bronze	Gold	Free Hanging (In-Line)	8 mm	0.315 in	59 Áin	1.5 Ám	Aerospace, Automotive, Aviation, Military	Female Sockets, Plug	Shielded	Polyetheretherketone (PEEK)	Crimp	-55 °C	200 °C	Coupling Nut	Metal	S	Aluminum Alloy	IP68 - Dust Tight, Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Plug, Female Sockets Crimp
