1002-004-01010

Active

CnC Tech, LLC

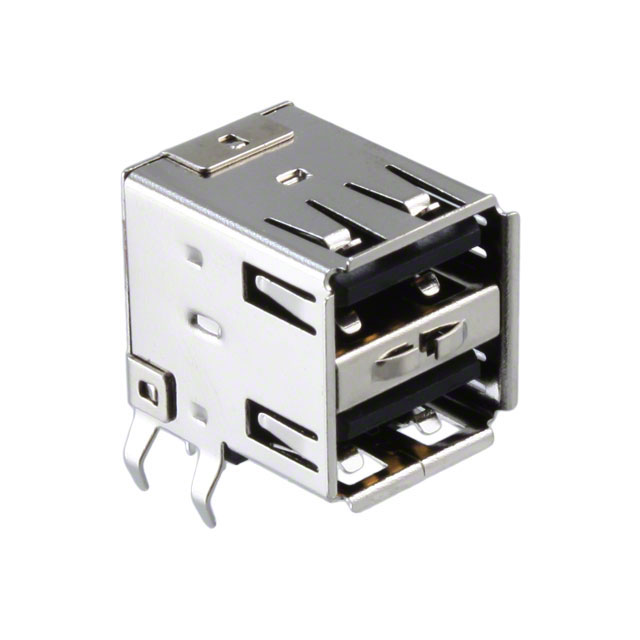

CONN RCPT USB2.0 TYPEA STACK R/A

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN RCPT USB2.0 TYPEA STACK R/A

Technical Specifications

Parameters and characteristics for this part

Specification	1002-004-01010

Connector Type	USB-A (USB TYPE-A), Stacked
Contact Finish	Gold
Current Rating (Amps)	1.5 A
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	1500
Mounting Feature	Horizontal
Mounting Type	Through Hole, Right Angle
Number of Contacts	8
Number of Ports	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell/Shielding Material	Brass
Specifications	USB 2.0
Termination	Solder
Voltage - Rated	30 V

CONN RCPT USB2.0 TYPEA STACK R/A

Part	Mounting Type	Number of Ports	Insulation Color	Mating Cycles	Voltage - Rated	Termination	Mounting Feature	Connector Type	Specifications	Gender	Contact Finish	Number of Contacts	Current Rating (Amps)	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Shell/Shielding Material
CnC Tech, LLC 1002-004-01010	Through Hole, Right Angle	2	Black	1500	30 V	Solder	Horizontal	Stacked, USB-A (USB TYPE-A)	USB 2.0	Receptacle	Gold	8	1.5 A	UL94 V-0	-40 °C	105 ░C	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-A (USB TYPE-A), Stacked USB 2.0 Receptacle Connector 8 Position Through Hole, Right Angle
