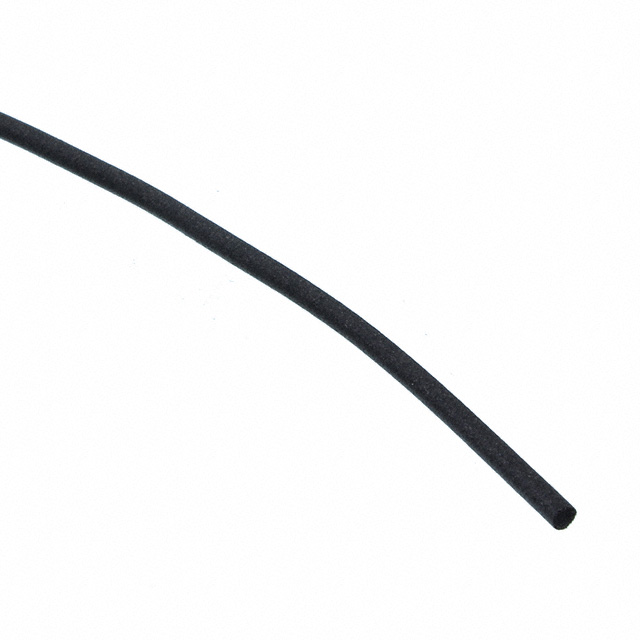

19-04-14206-S6305

Active

Parker Chomerics

RFI GASKET ELASTOMER NICKEL FEET

Search across all available documentation for this part.

Active

Parker Chomerics

RFI GASKET ELASTOMER NICKEL FEET

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RFI GASKET ELASTOMER NICKEL FEET

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	19-04-14206-S6305	19-04 Series

Attachment Method	No Adhesive	No Adhesive, Non-Conductive Adhesive
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Material	Conductive Elastomer	Conductive Elastomer
Operating Temperature [Max]	66 °C	66 °C
Operating Temperature [Min]	-29 °C	-29 °C
Plating	Nickel	Nickel
Shape	Round	Round
Spool Size	121.92 m	91.44 - 121.92 m
Spool Size	400 ft	300 - 400 ft
Spool Size	-	30.48 m
Spool Size	-	100 ft
Type	Gasket	Gasket
Width	-	1.27 - 1.68 mm
Width	-	0.05 - 0.066 in
Width	-	0.048 in
Width	-	1.22 mm
Width [x]	2.03 mm	1.09 - 2.54 mm
Width [x]	0.08 "	0.043 - 0.1 "

RF EMI GASKET 12" X 0.1"

Part	Operating Temperature [Max]	Operating Temperature [Min]	Shape	Type	Width [x]	Width [x]	Plating	Attachment Method	Length	Spool Size	Spool Size	Material	Width [y]	Width [y]
Parker Chomerics 19-04-16162-1298	66 °C	-29 °C	Round	Gasket	0.1 "	2.54 mm
Parker Chomerics 19-04-14206-S6305	66 °C	-29 °C	Round	Gasket	0.08 "	2.03 mm	Nickel	No Adhesive	Enter Number of Feet in Order Quantity	121.92 m	400 ft	Conductive Elastomer
Parker Chomerics 19-04-20581-S6305	66 °C	-29 °C	Round	Gasket			Nickel	No Adhesive				Conductive Elastomer	1.35 mm	0.053 in
Parker Chomerics 19-04-16162-S6305	66 °C	-29 °C	Round	Gasket	0.1 "	2.54 mm	Nickel	No Adhesive	Enter Number of Feet in Order Quantity	91.44 m	300 ft	Conductive Elastomer
Parker Chomerics 19-04-25875-6502	66 °C	-29 °C	Round	Gasket			Nickel	No Adhesive	Enter Number of Feet in Order Quantity	91.44 m	300 ft	Conductive Elastomer	1.27 mm	0.05 in
Parker Chomerics 19-04-14206-1298	66 °C	-29 °C	Round	Gasket	0.08 "	2.03 mm			Enter Number of Feet in Order Quantity
Parker Chomerics 19-04-28402-S6305	66 °C	-29 °C	Round	Gasket			Nickel	No Adhesive				Conductive Elastomer	1.68 mm	0.066 in
Parker Chomerics 19-04-25875-S6305	66 °C	-29 °C	Round	Gasket			Nickel	No Adhesive				Conductive Elastomer	1.27 mm	0.05 in
Parker Chomerics 19-04-28067-S6305	66 °C	-29 °C	Round	Gasket	0.06 in	1.52 mm	Nickel	No Adhesive				Conductive Elastomer
Parker Chomerics 19-04-22951-6502	66 °C	-29 °C	Round	Gasket			Nickel	No Adhesive				Conductive Elastomer
