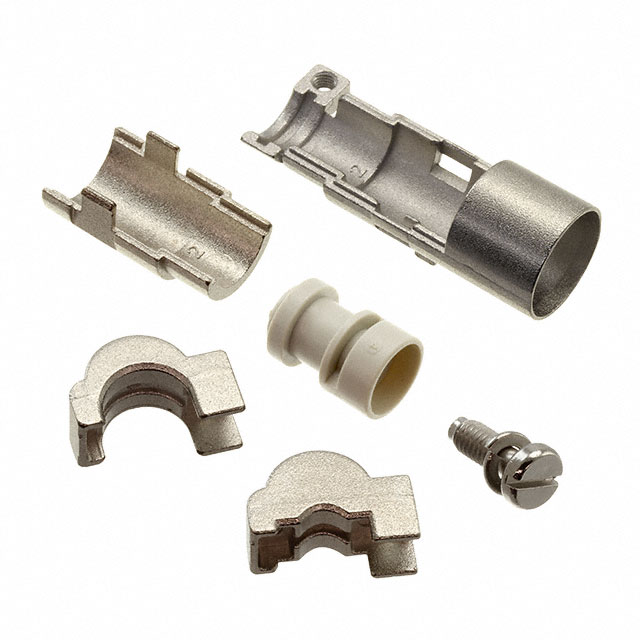

T2580011154-000
ActiveTE Connectivity AMP Connectors
PIN-Q1-M
Deep-Dive with AI
Search across all available documentation for this part.
T2580011154-000
ActiveTE Connectivity AMP Connectors
PIN-Q1-M
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T2580011154-000 | T258 Series |
|---|---|---|
| Connector Type | Insert without Contacts | Module without Contacts, Insert without Contacts |
| Contact Type | CEM, DEM | DDM, CDM, CEM, DEM, CEF, DEF |
| Current Rating (Amps) | 16 A | 10 - 16 A |
| Gender | Male | Male, Female |
| Housing Material | Polycarbonate (PC) | Polycarbonate (PC) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Number of Positions | 1 | 1 - 4 |
| Operating Temperature [Max] | 125 °C | 85 - 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Termination Style | Crimp | Crimp |
| Voltage Rating | 50 V | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.14 | |
| 20 | $ 4.48 | |||
| 40 | $ 4.36 | |||
| 60 | $ 4.25 | |||
| 100 | $ 4.15 | |||
T258 Series
T2580031154-000
| Part | Contact Type | Number of Positions | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Gender | Material Flammability Rating | Current Rating (Amps) | Connector Type | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T2580031154-000 | CDM, DDM | 4 | Polycarbonate (PC) | 85 °C | -40 °C | Crimp | Male | UL94 V-0 | 10 A | Module without Contacts | 50 V |
TE Connectivity AMP Connectors T2580011154-000 | CEM, DEM | 1 | Polycarbonate (PC) | 125 °C | -40 °C | Crimp | Male | UL94 V-0 | 16 A | Insert without Contacts | 50 V |
TE Connectivity AMP Connectors T2580012154-000 | CEF, DEF | 1 | Polycarbonate (PC) | 125 °C | -40 °C | Crimp | Female | UL94 V-0 | 16 A | Insert without Contacts | 50 V |
Description
General part information
T258 Series
Male Insert without Contacts 1 Position Crimp
