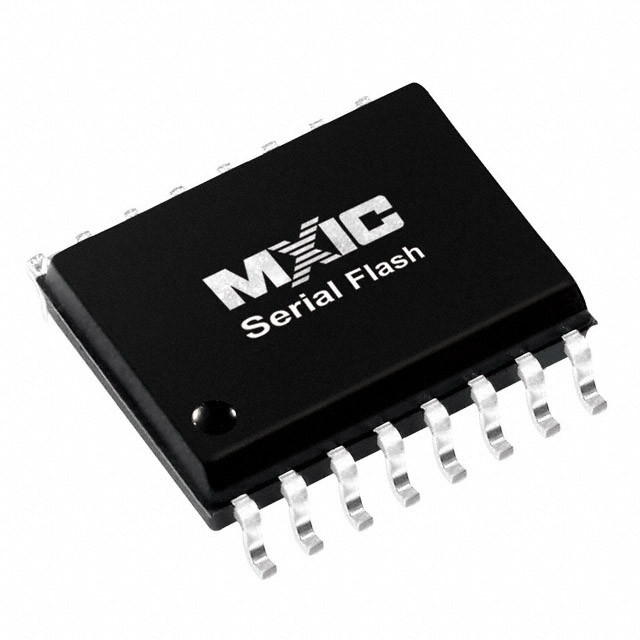

MX25L51245GMJ-08G

Active

Macronix

IC FLASH 512MBIT SPI/QUAD 16SOP

Search across all available documentation for this part.

Active

Macronix

IC FLASH 512MBIT SPI/QUAD 16SOP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MX25L51245GMJ-08G	MX25L51245 Series

Access Time	-	5.5 ns
Clock Frequency	133 MHz	104 - 133 MHz
Memory Format	FLASH	FLASH
Memory Interface	Quad I/O, QPI, SPI, DTR	Quad I/O, QPI, SPI, DTR
Memory Organization	64 M	64 M
Memory Organization	-	256M x 2, 512M x 1, 128M x 4
Memory Size	64 MB	64 MB
Memory Type	Non-Volatile	Non-Volatile
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	105 °C	105 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	16-SOIC	16-SOIC
Package / Case [x]	0.295 in	0.295 in
Package / Case [y]	7.5 mm	7.5 mm
Supplier Device Package	16-SOP	16-SOP
Technology	FLASH - NOR	FLASH - NOR (SLC), FLASH - NOR
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	2.7 V	2.7 V
Write Cycle Time - Word, Page	-	4 ms
Write Cycle Time - Word, Page [custom]	750 µs	750 µs
Write Cycle Time - Word, Page [custom]	60 µs	60 µs

IC FLASH 512MBIT SPI/QUAD 16SOP

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Supplier Device Package	Memory Interface	Technology	Memory Organization	Memory Format	Package / Case [x]	Package / Case	Package / Case [y]	Access Time	Write Cycle Time - Word, Page	Memory Size	Memory Type	Clock Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Memory Organization	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]
Macronix MX25L51245GMJ-10G	2.7 V	3.6 V	Surface Mount	16-SOP	DTR, QPI, Quad I/O, SPI	FLASH - NOR (SLC)	128M x 4, 256M x 2, 512M x 1	FLASH	0.295 in	16-SOIC	7.5 mm	5.5 ns	4 ms	64 MB	Non-Volatile	104 MHz	105 °C	-40 °C
Macronix MX25L51245GMJ-08G	2.7 V	3.6 V	Surface Mount	16-SOP	DTR, QPI, Quad I/O, SPI	FLASH - NOR		FLASH	0.295 in	16-SOIC	7.5 mm			64 MB	Non-Volatile	133 MHz	105 °C	-40 °C	64 M	750 µs	60 µs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

FLASH - NOR Memory IC 512Mbit SPI - Quad I/O, QPI, DTR 133 MHz 16-SOP
