CS63C-F3050CQ18-12.000M-TR
ActiveTransko Electronics, Inc.

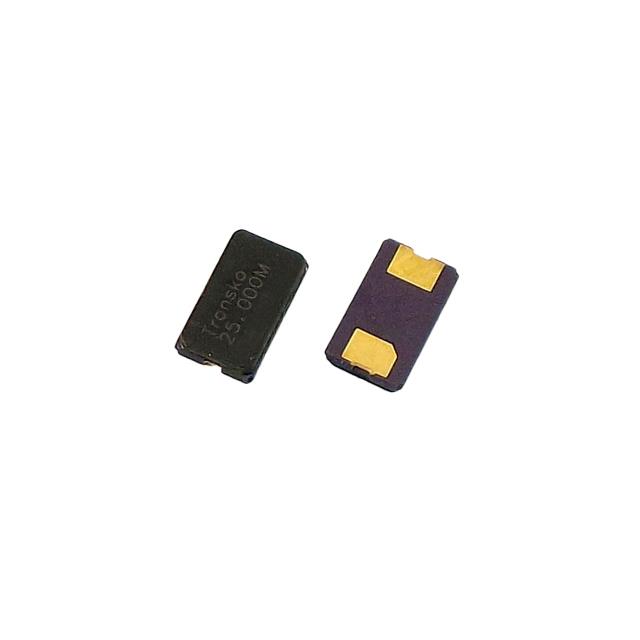

12.000MHZ 6.0 X 3.5MM 2PAD SMD,
CS63C-F3050CQ18-12.000M-TR
ActiveTransko Electronics, Inc.
12.000MHZ 6.0 X 3.5MM 2PAD SMD,
Description
General part information
CS63C-F3050CQ18-12.000M-TR
12 MHz ±30ppm Crystal 18pF 100 Ohms 2-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | CS63C-F3050CQ18-12.000M-TR |
|---|---|
| ESR (Equivalent Series Resistance) | 100 Ohm |
| Frequency | 12 MHz |
| Frequency Stability | 50 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) | 0.039 in |
| Load Capacitance | 18 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | No Lead, 2-SMD |
| Size / Dimension Length | 0.236 in |
| Size / Dimension Width | 0.126 in |
| Type | MHz Crystal |
