TFT25014 NA005

Active

ALPHA WIRE

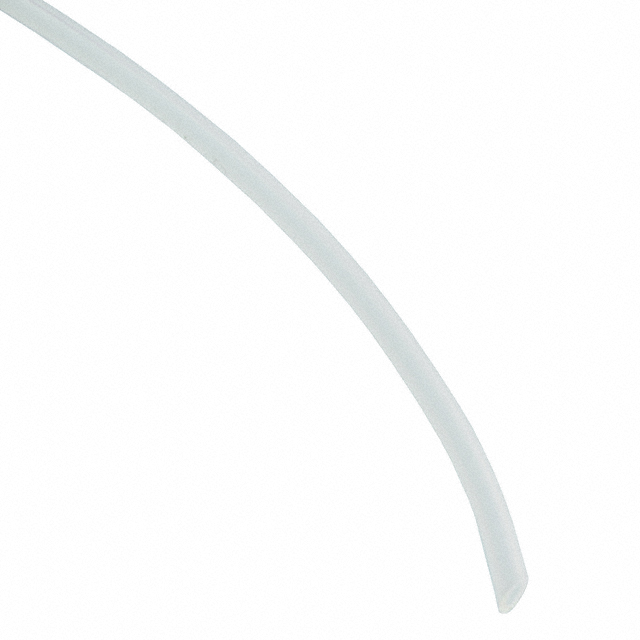

TUBING 0.064" ID PTFE 100' NAT

Search across all available documentation for this part.

Active

ALPHA WIRE

TUBING 0.064" ID PTFE 100' NAT

Technical Specifications

Parameters and characteristics for this part

Specification	TFT25014 NA005

Abrasion Protection	Abrasion Resistant
Color	Natural
Diameter - Inside [diameter]	1.63 mm
Diameter - Inside [diameter]	0.064 in
Diameter - Outside [diameter]	2.69 mm
Diameter - Outside [diameter]	0.106 in
Environment Protection	Corrosion Resistant
Features	Chemical Resistant
Heat Protection	Heat Resistant
Length	100 ft
Length	30.48 m
Liquid Protection	Oil Resistant
Material	Polytetrafluoroethylene (PTFE)
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	260 ░C
Operating Temperature [Min]	-103 °F
Type	Solid Tubing
Type Attributes	Smooth
Wall Thickness	0.016 in
Wall Thickness	0.4 mm

TUBING 0.064" ID PTFE 100' NAT

Part	Material	Liquid Protection	Environment Protection	Type	Material Flammability Rating	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Color	Wall Thickness	Wall Thickness	Length	Length	Heat Protection	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Abrasion Protection	Type Attributes	Features	Operating Temperature [Max]	Operating Temperature [Min]
ALPHA WIRE TFT25014 NA005	Polytetrafluoroethylene (PTFE)	Oil Resistant	Corrosion Resistant	Solid Tubing	UL94 V-0	2.69 mm	0.106 in	Natural	0.016 in	0.4 mm	100 ft	30.48 m	Heat Resistant	1.63 mm	0.064 in	Abrasion Resistant	Smooth	Chemical Resistant	260 ░C	-103 °F

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Natural Polytetrafluoroethylene (PTFE) Smooth Solid Tubing 0.064" (1.63mm) 100' (30.48m)
