2940427

Active

Phoenix Contact

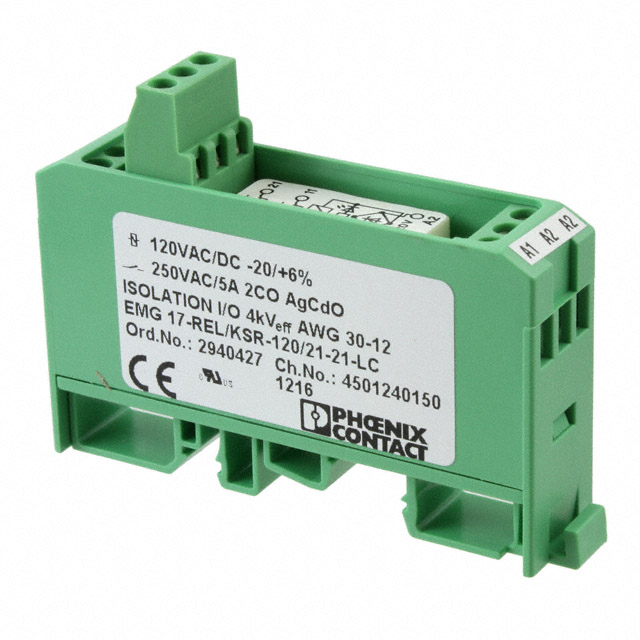

RELAY GEN PURPOSE DPDT 5A 120V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE DPDT 5A 120V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2940427	29404 Series

Approval Agency	-	UL, EAC, cULus
Coil Current	6 mA	4 - 10 mA
Coil Resistance	-	4.8 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	120 VAC, 120 VDC	48 - 230 VAC
Contact Form	DPDT (2 Form C)	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi)	Silver Nickel (AgNi)
Contact Rating (Current)	5 A	5 A
Features	Socket Included	Socket Included, Lighted Indicator
Load - Max Switching	-	120 - 1250 VA
Mounting Type	DIN Rail	DIN Rail
Operate Time	8 ms	7 - 8 ms
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	-20 C	-20 C
Relay Type	General Purpose	General Purpose
Release Time	10 ms	3 - 10 ms
Switching Voltage	250 VAC, 250 VDC	250 VAC
Termination Style	Screw Terminal	Screw Terminal

RELAY GEN PURPOSE DPDT 5A 120V

Part	Termination Style	Features	Operating Temperature [Min]	Operating Temperature [Max]	Coil Voltage	Mounting Type	Release Time	Coil Current	Contact Rating (Current)	Switching Voltage	Contact Material	Relay Type	Operate Time	Contact Form	Coil Type	Load - Max Switching	Coil Resistance	Approval Agency
Phoenix Contact 2940427	Screw Terminal	Socket Included	-20 C	40 °C	120 VAC, 120 VDC	DIN Rail	10 ms	6 mA	5 A	250 VAC, 250 VDC	Silver Nickel (AgNi)	General Purpose	8 ms	DPDT (2 Form C)	Non Latching
Phoenix Contact 2940401	Screw Terminal	Lighted Indicator, Socket Included	-20 C	40 °C	48 VAC/DC	DIN Rail	10 ms	10 mA	5 A	250 VAC, 250 VDC	Silver Nickel (AgNi)	General Purpose	8 ms	DPDT (2 Form C)	Non Latching	120 W, 1250 VA	4.8 kOhms	cULus, EAC, UL
Phoenix Contact 2940430	Screw Terminal	Socket Included	-20 C	40 °C	230 VAC	DIN Rail	3 ms	4 mA	5 A	250 VAC, 250 VDC	Silver Nickel (AgNi)	General Purpose	7 ms	DPDT (2 Form C)	Non Latching

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 90.93

General part information

General Purpose Relay DPDT (2 Form C) 120VAC/DC Coil DIN Rail

Technical documentation and resources
