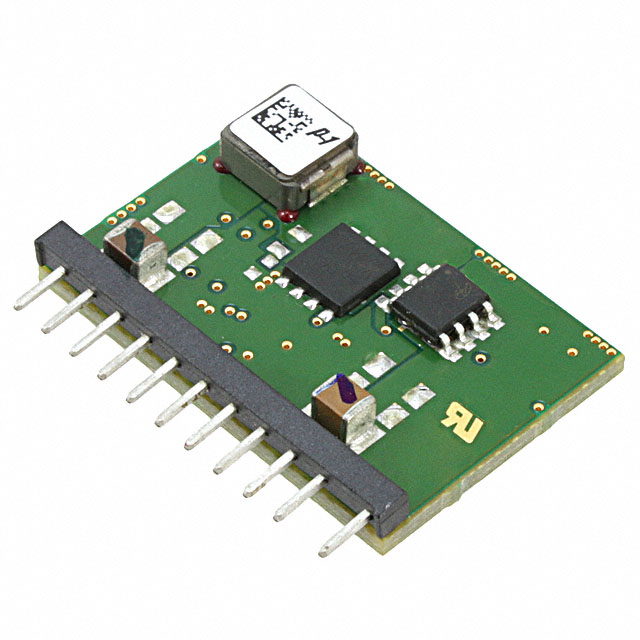

DP8105G-T100

Active

Bel Power Solutions

DC DC CONVERTER 0.7-5.5V

Search across all available documentation for this part.

Active

Bel Power Solutions

DC DC CONVERTER 0.7-5.5V

Technical Specifications

Parameters and characteristics for this part

Specification	DP8105G-T100

Applications	ITE (Commercial)
Current - Output (Max) [Max]	5 A
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	11-SIP Module
Size / Dimension [x]	1.2 "
Size / Dimension [x]	30.5 mm
Size / Dimension [y]	6.7 mm
Size / Dimension [y]	0.26 "
Size / Dimension [z]	21.4 mm
Size / Dimension [z]	0.84 "
Type	Non-Isolated PoL Module, Digital
Voltage - Input (Max) [Max]	14 V
Voltage - Input (Min) [Min]	8 V
Voltage - Output 1 [Max]	5.5 V
Voltage - Output 1 [Min]	0.7 V

DC DC CONVERTER 0.7-5.5V

Part	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Number of Outputs	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Type	Voltage - Input (Min) [Min]	Package / Case	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Applications	Operating Temperature [Max]	Operating Temperature [Min]
Bel Power Solutions DP8105G-T100	5 A	14 V	1	5.5 V	0.7 V	Non-Isolated PoL Module, Digital	8 V	11-SIP Module	Through Hole	1.2 "	6.7 mm	30.5 mm	21.4 mm	0.26 "	0.84 "	ITE (Commercial)	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.7 ~ 5.5V 5A 8V - 14V Input
