Specification	PX0552

Applications	General Purpose
Color	Black

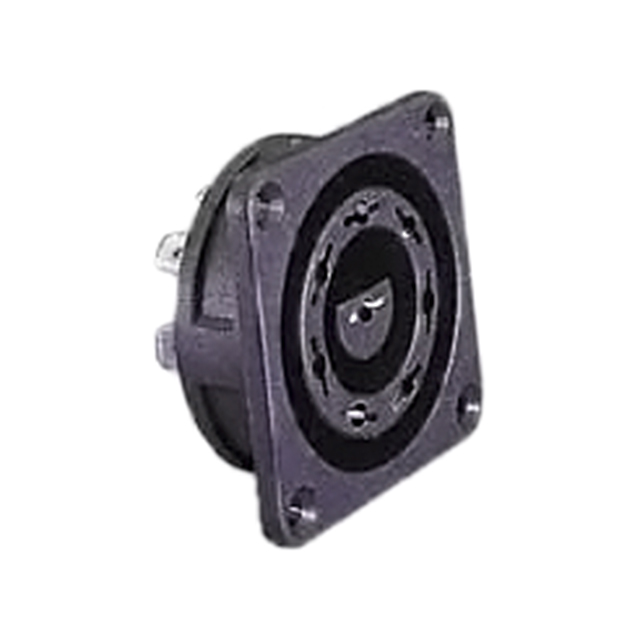

Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Tin
Contact Material	Brass
Current Rating	6 A
Fastening Type	Push-Pull
Material Flammability Rating	UL94 HB
Mounting Feature	Flange
Mounting Type	Panel Mount
Number of Positions	8
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shielding	Unshielded
Termination	Quick Connect
Termination Probe Tip OD	0.189 in
Voltage Rating	250 V

- Series

...

Part	Accessory Type	Material	Color	Features	For Use With/Related Products	Number of Positions	Outside Cable Diameter (Min)	Outside Cable Diameter (Max)	Ingress Protection IP Rating	Ingress Protection Description	Type	Material Flammability Rating	Fastening Type	Operating Temperature (Max)	Operating Temperature (Min)	Housing Color	Primary Material	Connector Type	Note	Shell Material	Mounting Type	Shielding
BULGIN LIMITED SL0002	Wire Seal
BULGIN LIMITED PXP6083	Cap (Cover) Sealing	Thermoplastic	Gray	Contains Strap Dust Tight Waterproof	PXP6012
BULGIN LIMITED WLMP04	Wedgelock					4
BULGIN LIMITED PXA980		Silicone	Multiple				0.551 in	0.787 in	IP68	Dust Tight Waterproof	Cable Gland
BULGIN LIMITED WLPP02	Wedgelock					2
BULGIN LIMITED WLS03	Wedgelock				PX0100 Series	3
BULGIN LIMITED PX0801				Backshell					IP68	Dust Tight Waterproof		UL94 V-0	Threaded	70 °C	-20 °C	Black	Plastic	Insert Shell	Contacts Not Included Insert Not Included	Nylon Polyamide (PA)	Free Hanging (In-Line)	Unshielded
BULGIN LIMITED WLS02	Wedgelock				PX0100 Series	2
BULGIN LIMITED PXP4083	Cap (Cover) Sealing	Polybutylene Terephthalate (PBT) Polycarbonate (PC)	Blue	Contains Strap Dust Tight Waterproof	PXP4013 PXP4043
BULGIN LIMITED PX0992	Cap (Cover) Sealing	Nylon Polyamide (PA) Polyimide	Blue	Dust Tight Metal Strap Waterproof	Buccaneer® 900 Series PX0931/xx/x and PX0941/xx/x
