Description

General part information

HV-32H307B/260/2UYSYGM-U1930

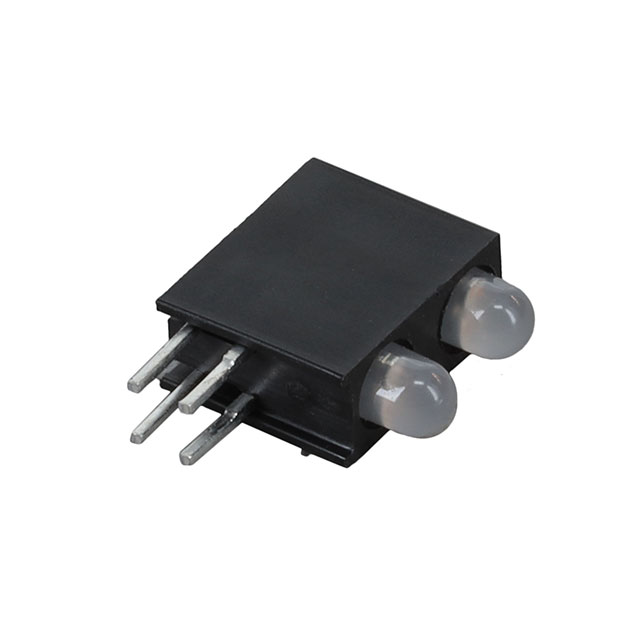

LED Circuit Board Indicator LED Circuit Board Indicator 2 High Green, Yellow Diffused, White 2V Green, 2V Yellow 20mA Green, 20mA Yellow Round with Domed Top 3.00mm Dia Through Hole, Right Angle

Technical Specifications

Parameters and characteristics for this part

SpecificationHV-32H307B/260/2UYSYGM-U1930
ColorYellow, Green
ConfigurationHigh
Configuration Count2
Current (Green)20 mA
Current (Yellow)20 mA
Current ColorsYellow, Green
Lens Diameter3 mm
Lens StyleRound, Domed Top
Lens TypeWhite, Diffused
Millicandela Rating (Green)25 mcd
Millicandela Rating (Yellow)15 mcd
Millicandela Rating ColorsYellow, Green
Mounting TypeThrough Hole, Right Angle
Viewing Angle60 °
Voltage Rating - ColorYellow, Green
Voltage Rating (Green)2 V
Voltage Rating (Yellow)2 V
Wavelength - Peak (1)575 nm
Wavelength - Peak (2)595 nm
