74ABT16821ADGG,118

Active

NXP USA Inc.

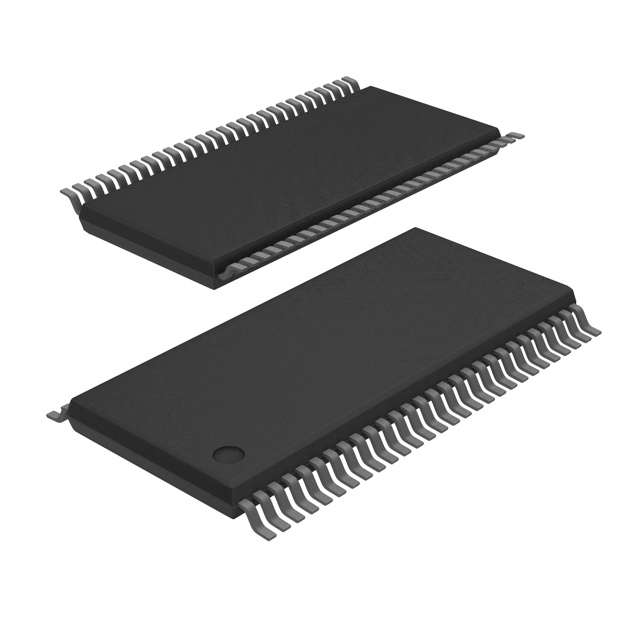

IC FF D-TYPE DUAL 10BIT 56TSSOP

Search across all available documentation for this part.

Active

NXP USA Inc.

IC FF D-TYPE DUAL 10BIT 56TSSOP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	74ABT16821ADGG,118	74ABT16821 Series

Clock Frequency	250 MHz	250 MHz
Current - Output High, Low [custom]	64 mA	64 mA
Current - Output High, Low [custom]	32 mA	32 mA
Current - Quiescent (Iq)	1 mA	1 mA
Function	Standard	Standard
Input Capacitance	3 pF	3 pF
Max Propagation Delay @ V, Max CL	3.3 ns	3.3 ns
Mounting Type	Surface Mount	Surface Mount
Number of Bits per Element	10	10
Number of Elements	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	Tri-State, Non-Inverted	Tri-State, Non-Inverted
Package / Case	6.1 mm	6.1 - 7.5 mm
Package / Case	0.24 in	0.24 - 0.295 in
Package / Case	56-TFSOP	56-BSSOP, 56-TFSOP
Supplier Device Package	56-TSSOP	56-SSOP, 56-TSSOP
Trigger Type	Positive Edge	Positive Edge
Type	D-Type	D-Type
Voltage - Supply [Max]	5.5 V	5.5 V
Voltage - Supply [Min]	4.5 V	4.5 V

IC FF D-TYPE DUAL 10BIT 56SSOP

Part	Current - Quiescent (Iq)	Number of Bits per Element	Max Propagation Delay @ V, Max CL	Package / Case	Package / Case	Package / Case	Clock Frequency	Supplier Device Package	Mounting Type	Output Type	Type	Input Capacitance	Function	Operating Temperature [Max]	Operating Temperature [Min]	Number of Elements	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Trigger Type	Voltage - Supply [Min]	Voltage - Supply [Max]
NXP USA Inc. 74ABT16821ADL,518	1 mA	10	3.3 ns	0.295 in	56-BSSOP	7.5 mm	250 MHz	56-SSOP	Surface Mount	Non-Inverted, Tri-State	D-Type	3 pF	Standard	85 °C	-40 °C	2	64 mA	32 mA	Positive Edge	4.5 V	5.5 V
NXP USA Inc. 74ABT16821ADGG,118	1 mA	10	3.3 ns	0.24 in	56-TFSOP	6.1 mm	250 MHz	56-TSSOP	Surface Mount	Non-Inverted, Tri-State	D-Type	3 pF	Standard	85 °C	-40 °C	2	64 mA	32 mA	Positive Edge	4.5 V	5.5 V
NXP USA Inc. 74ABT16821ADL,512	1 mA	10	3.3 ns	0.295 in	56-BSSOP	7.5 mm	250 MHz	56-SSOP	Surface Mount	Non-Inverted, Tri-State	D-Type	3 pF	Standard	85 °C	-40 °C	2	64 mA	32 mA	Positive Edge	4.5 V	5.5 V
NXP USA Inc. 74ABT16821ADGG,112	1 mA	10	3.3 ns	0.24 in	56-TFSOP	6.1 mm	250 MHz	56-TSSOP	Surface Mount	Non-Inverted, Tri-State	D-Type	3 pF	Standard	85 °C	-40 °C	2	64 mA	32 mA	Positive Edge	4.5 V	5.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Flip Flop 2 Element D-Type 10 Bit Positive Edge 56-TFSOP (0.240", 6.10mm Width)
