AN_GSM_824
ActiveSuzhou Maswell Communication Technology Co. Ltd
4G/3G/GSM ANTENNA 900/1800/2100
AN_GSM_824
ActiveSuzhou Maswell Communication Technology Co. Ltd
4G/3G/GSM ANTENNA 900/1800/2100
Description
General part information
AN_GSM_824

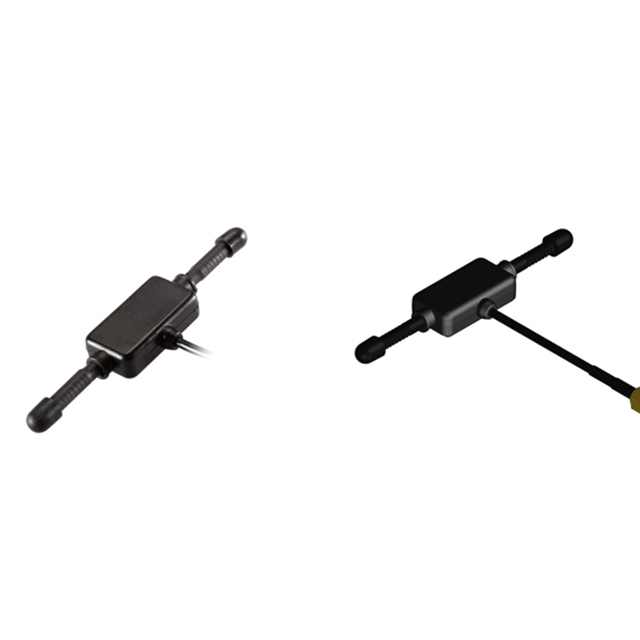

RF ANTENNA 3G, 4G, GSM Module SMA Male Adhesive
Technical Specifications
Parameters and characteristics for this part
| Specification | AN_GSM_824 |
|---|---|
| Antenna Type | Module |
| Applications | 3G, GSM, 4G |
| Features | 5m, Cable |
| Frequency (Band) | 1.94 GHz |
| Frequency (Center) | 892 MHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 960 MHz |
| Frequency Range (Band 1) Minimum | 824 MHz |
| Frequency Range (Band 2) Maximum | 2.17 GHz |
| Frequency Range (Band 2) Minimum | 1.71 GHz |
| Gain | 3 dBi |
| Height (Max) | 0.343 in |
| Mounting Type | Adhesive |
| Number of Bands | 2 |
| RF Family/Standard | Cellular |
| Termination Type | SMA Male |
| VSWR | 2 |
