1219/37C SL005

Active

ALPHA WIRE

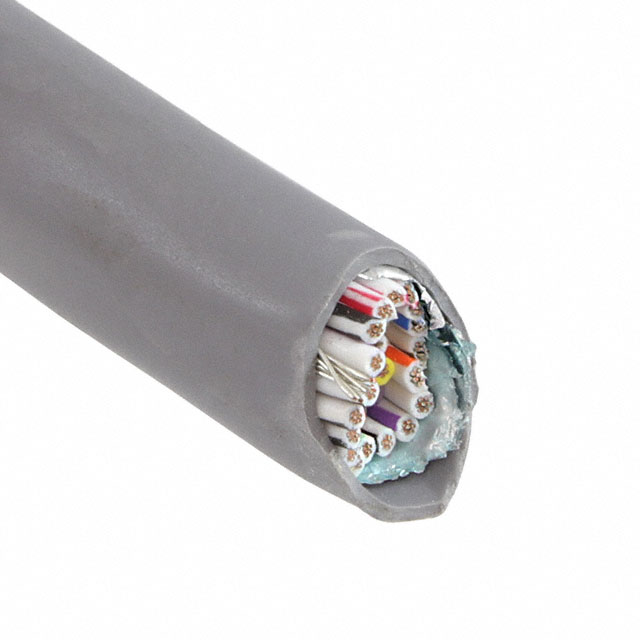

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 37 CONDUCTOR, 24 AWG, 0.23 MM², 100 FT, 30.5 M

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 37 CONDUCTOR, 24 AWG, 0.23 MM², 100 FT, 30.5 M

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1219/37C SL005	1219/37C Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	32 AWG	32 AWG
Conductor Strand [custom]	7	7
Features	Drain Wire	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.376 in	0.376 in
Jacket (Insulation) Diameter [diameter]	9.55 mm	9.55 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate	Slate
Length [x]	30.5 m	30.5 - 152.4 m
Length [x]	100 ft	100 - 500 ft
Number of Conductors	37	37
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Shield Coverage	100 %	100 %
Shield Material	Aluminum	Aluminum
Shield Type	Foil	Foil
Usage	Control, Communication	Control, Communication
Voltage	300 V	300 V
Wire Gauge	24 AWG	24 AWG

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 37 CONDUCTOR, 24 AWG, 0.23 MM², 100 FT, 30.5 M

Part	Cable Type	Jacket (Insulation) Material	Conductor Insulation	Length [x]	Length [x]	Features	Shield Type	Shield Material	Wire Gauge	Number of Conductors	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Usage	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]
ALPHA WIRE 1219/37C SL005	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	30.5 m	100 ft	Drain Wire	Foil	Aluminum	24 AWG	37	-20 C	80 C	Slate	300 V	0.376 in	9.55 mm	100 %	Communication, Control	Copper, Tinned	32 AWG	7
ALPHA WIRE 1219/37C SL002	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	152.4 m	500 '	Drain Wire	Foil	Aluminum	24 AWG	37	-20 C	80 C	Slate	300 V	0.376 in	9.55 mm	100 %	Communication, Control	Copper, Tinned	32 AWG	7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

37 Conductor Multi-Conductor Cable Slate 24 AWG Foil 100.0' (30.5m)
