827881-2

Active

TE Connectivity AMP Connectors

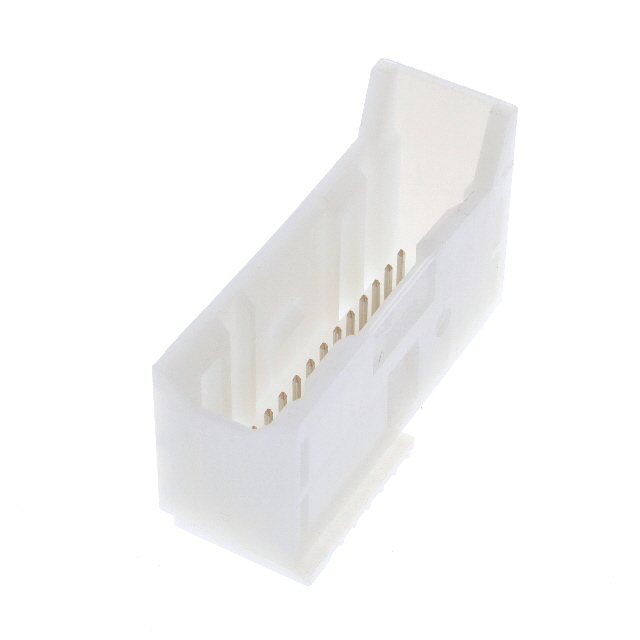

CONN HEADER VERT 26POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 26POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	827881-2

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	78.7 µin
Contact Finish Thickness - Mating	2 µm
Contact Length - Mating [x]	0.224 in
Contact Length - Mating [x]	5.7 mm
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Friction Lock
Features	Board Guide
Insulation Color	Natural
Insulation Height	1.063 in
Insulation Height	27 mm
Mounting Type	Through Hole
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Overall Contact Length	12.7 mm
Overall Contact Length	0.5 "
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

CONN HEADER VERT 26POS 2.54MM

Part	Contact Shape	Mounting Type	Contact Finish - Post	Style	Termination	Contact Length - Post	Contact Length - Post	Contact Length - Mating [x]	Contact Length - Mating [x]	Shrouding	Contact Type	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Features	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Connector Type	Overall Contact Length	Overall Contact Length	Insulation Color
TE Connectivity AMP Connectors 827881-2	Square	Through Hole	Tin	Board to Cable/Wire	Solder	3.5 mm	0.138 in	0.224 in	5.7 mm	Shrouded - 4 Wall	Male Pin	Friction Lock	2.54 mm	0.1 in	All	Board Guide	0.1 in	2.54 mm	1.063 in	27 mm	26	78.7 µin	2 µm	2	Header	12.7 mm	0.5 "	Natural

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 26 position 0.100" (2.54mm)
