SR3C-A1
ActiveHoneywell Sensing and Productivity Solutions
SENSOR UNIPOLAR SW CUR W LEADS
SR3C-A1
ActiveHoneywell Sensing and Productivity Solutions
SENSOR UNIPOLAR SW CUR W LEADS
Description
General part information
SR3C-A1

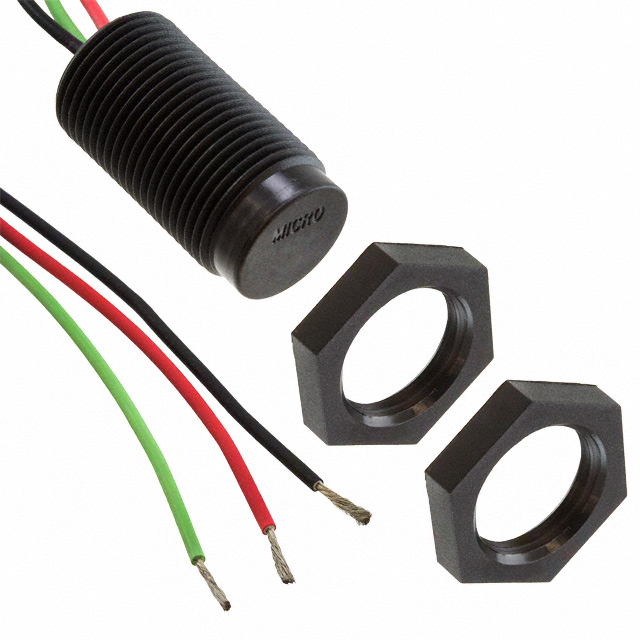

Magnetic Unipolar Switch Magnet, South Pole Current Wire Leads Cylinder, Threaded
Technical Specifications
Parameters and characteristics for this part
| Specification | SR3C-A1 |
|---|---|
| Actuator Material | Magnet, South Pole |
| Frequency | 100 kHz |
| Must Operate (Magnetic Field) | 19 mT |
| Must Release | 6 mT |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Current |
| Package / Case | Threaded, Cylinder |
| Termination Style | Wire Leads |
| Type | Unipolar Switch |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 4.5 V |
